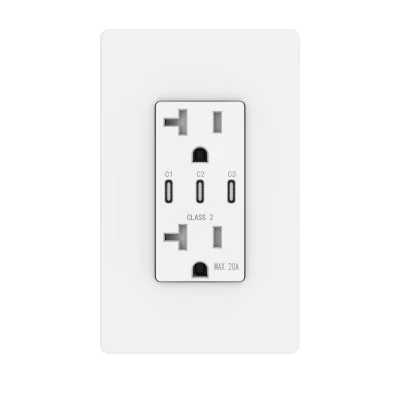

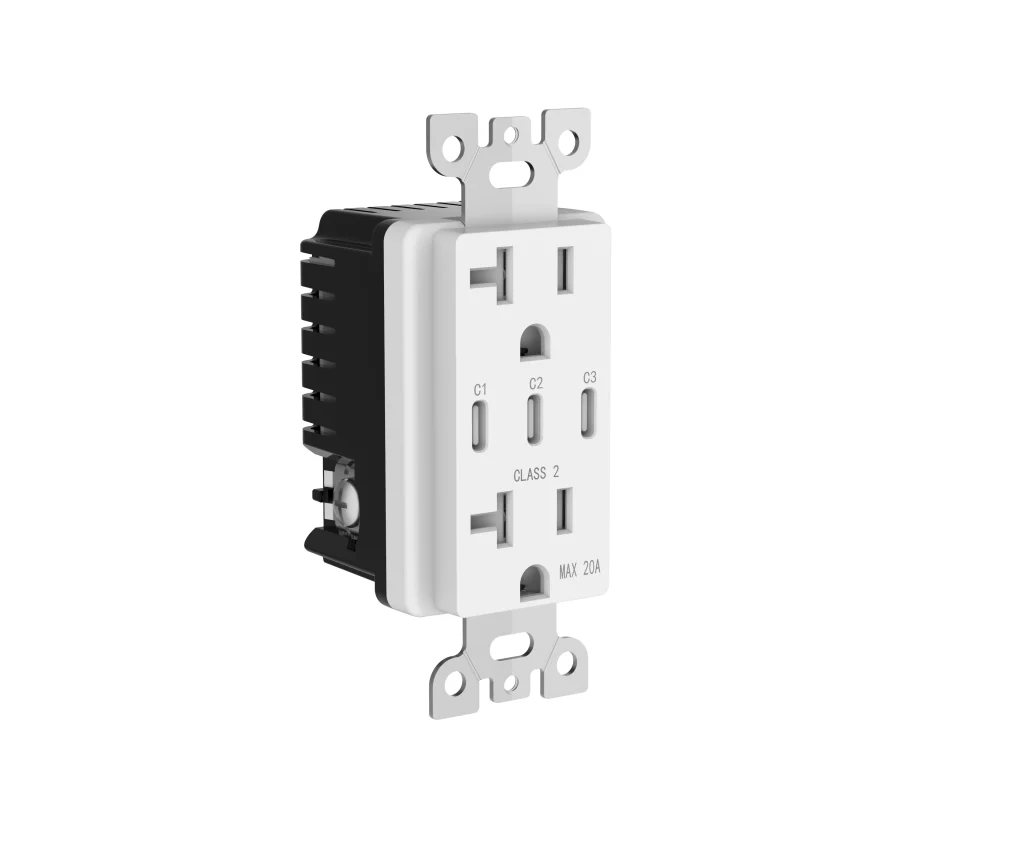

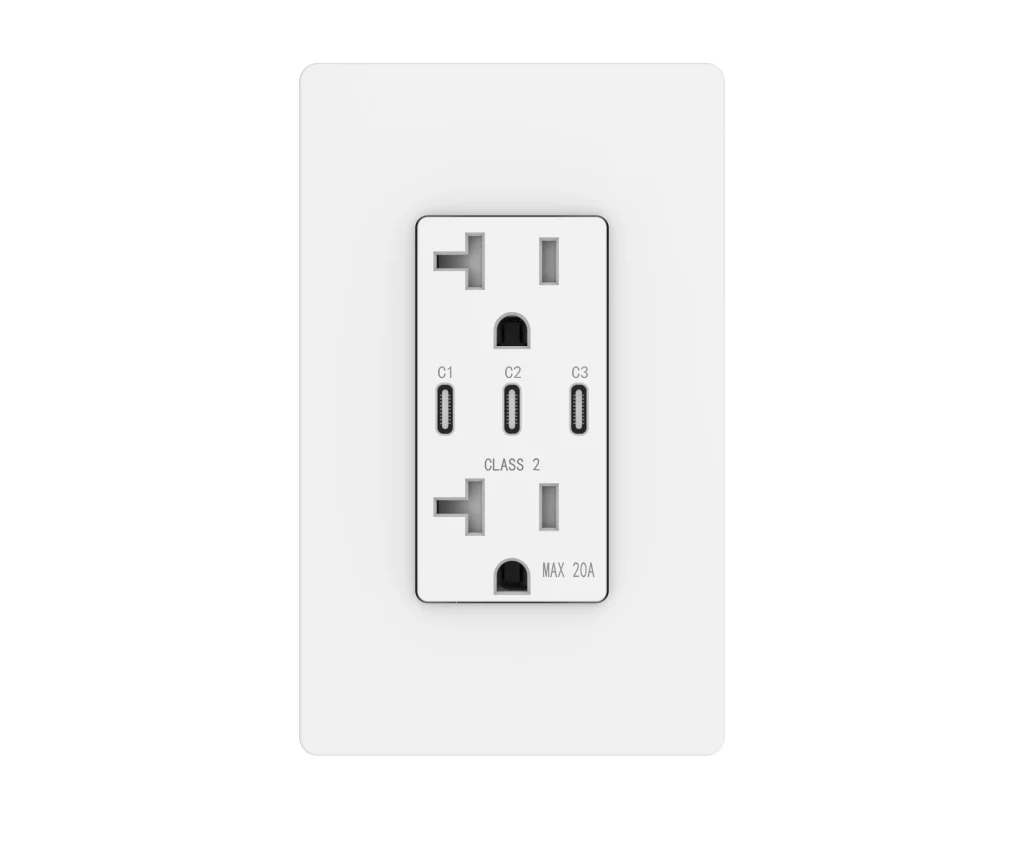

PANA050A-3C (In Wall-20A TR Duplex Receptacle)

Specifications
Brand	TENIA
MOQ	3000

Competitive price with good quality products + −

We have our own factory and can provide you with the best price and quality.

Quick response + −

We will reply your enquiry promptly in 24 hours.

Send Us an Enquiry

Description

Model No.	AC Outlet Current	Charging port	Charging Power	Charging output parameter
PANA050A-3C-65W	Duplex total 20A Max	USB Type-(3C) C1:main	Max 65W	Single-port charging	Type-C1	65W Max.	5V/9V/12V/15V┄3A,20V┄3.25A
					Type-C2	65W Max.	5V/9V/12V/15V┄3A,20V┄3.25A
					Type-C3	30W Max.	5V/9V ┄3A, 12V ┄2.5A 20V┄1.5A
				Two-port charging Type-(C1+C2)	Type-C1	45W Max.	5V/9V/12V/15V┄3A,20V┄2.25A
				Two-port charging Type-(C1+C2)	Type-C2	20W Max.	5V┄3A, 9V┄2.2A 12V┄1.67A
				Two-port charging Type-(C1+C3)	Type-C1	45W Max.	5V/9V/12V/15V┄3A,20V┄2.25A
				Two-port charging Type-(C1+C3)	Type-C3	18W Max.
				Two-port charging	Type-(C2+C3)	15W Max.	5V┄3A(shared)
				Three-port charging Type-(C1+C2+C3)	Type-C1	45W Max.	5V/9V/12V/15V┄3A,20V┄2.25A
				Three-port charging Type-(C1+C2+C3)	Type-(C2+C3)	15W Max.	5V┄3A(shared)

Model No.	AC Outlet Current	Charging port	Charging Power	Charging output parameter
PANA050A-3C-35W-A	Duplex total 20A Max.	USB Type-(3C)	Max 35W	Single-port charging	Type-C1	35W Max.	5V/9V┄3A,12V┄2.91A,15V┄2.33A,20V┄1.75A
					Type-C2	27W Max.
					Type-C3	35W Max.	5V/9V┄3A,12V┄2.91A,15V┄2.33A,20V┄1.75A
				Two-port charging	C1+C2	15W Max.	5V┄3A (Share)
					C1+C3	15W Max.	5V┄3A (Share)
					C2+C3	15W Max.	5V┄3A (Share)
				Three-port charging	C1+C2+C3	15W Max.	5V┄3A (Share)
