| Series | Model Number | Wattage (W) |
Incandescent Wattage Comparison(W) |
Luminous Flux(lm) |
Base | M.O.L(mm/in) | M.O.D (mm/in) |
||||
| Standard | Dimmable | E12 | E14 | E26 | E27 | ||||||

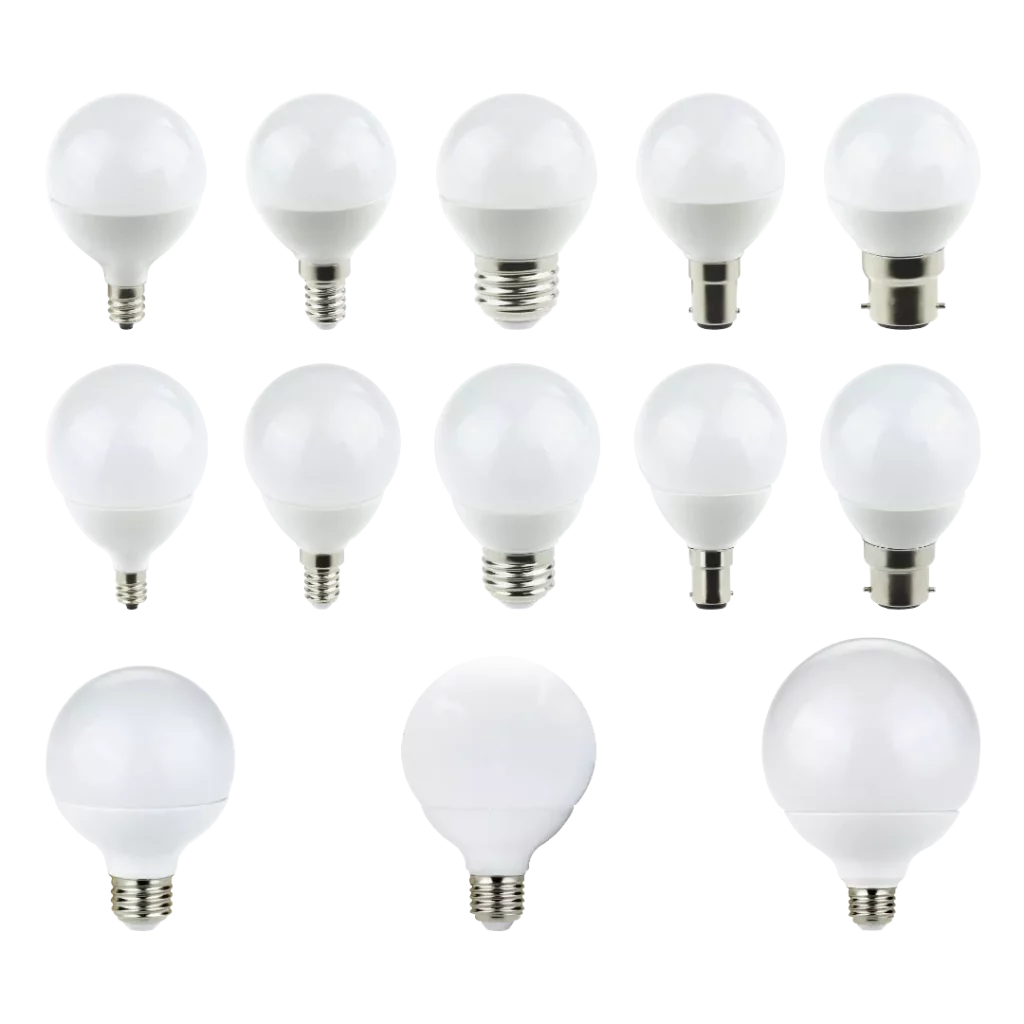

| Frosted Series | |||||||||||

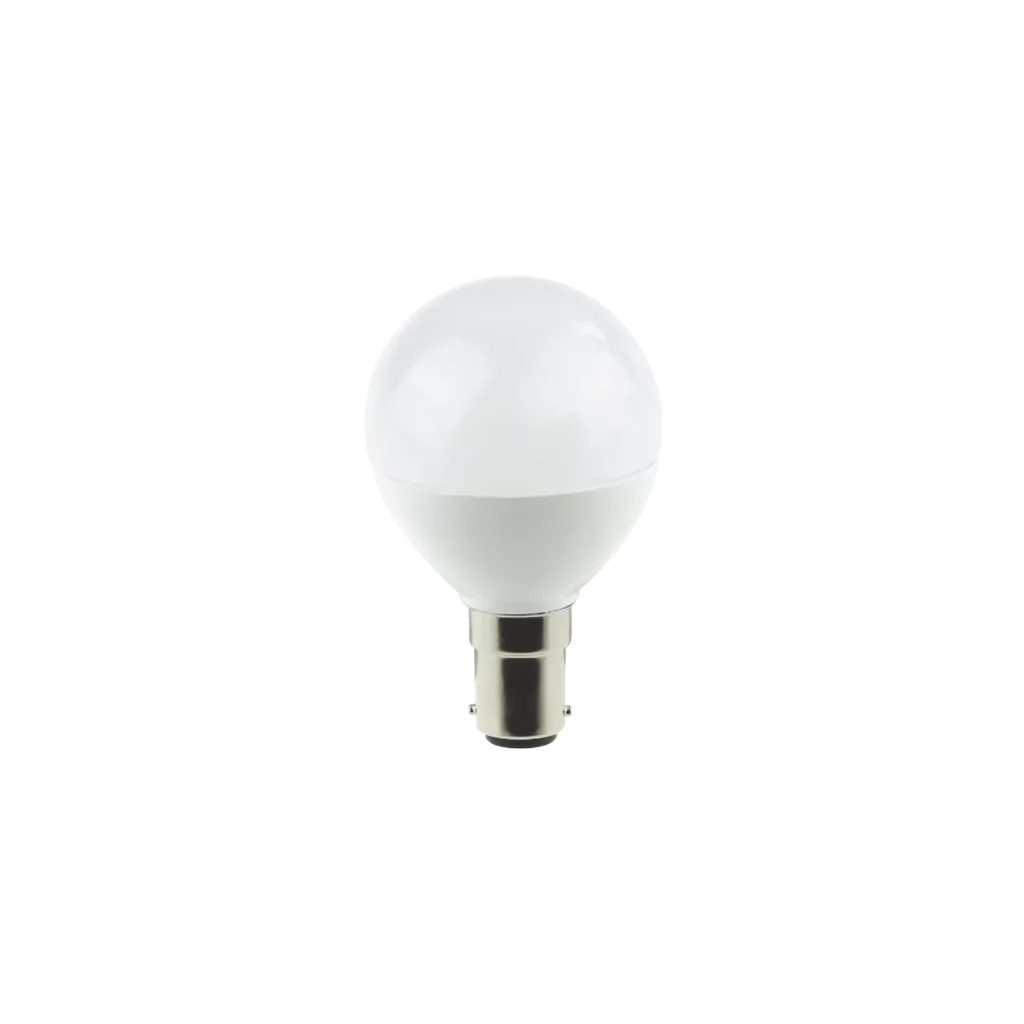

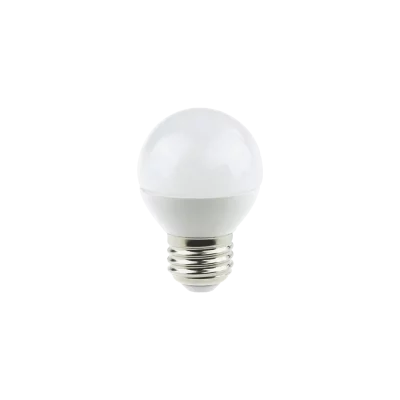

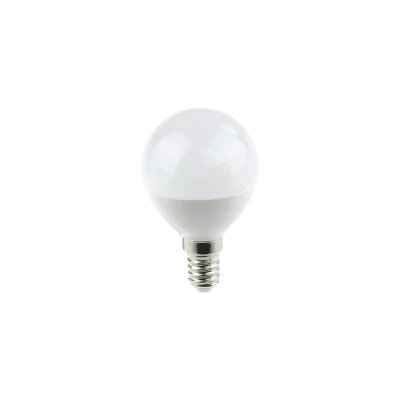

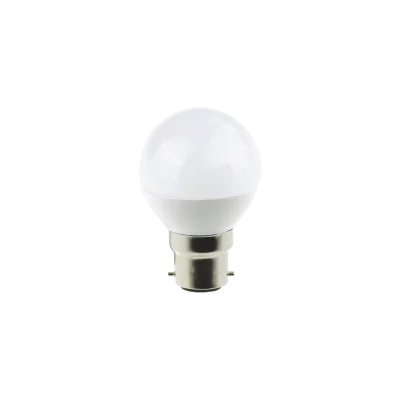

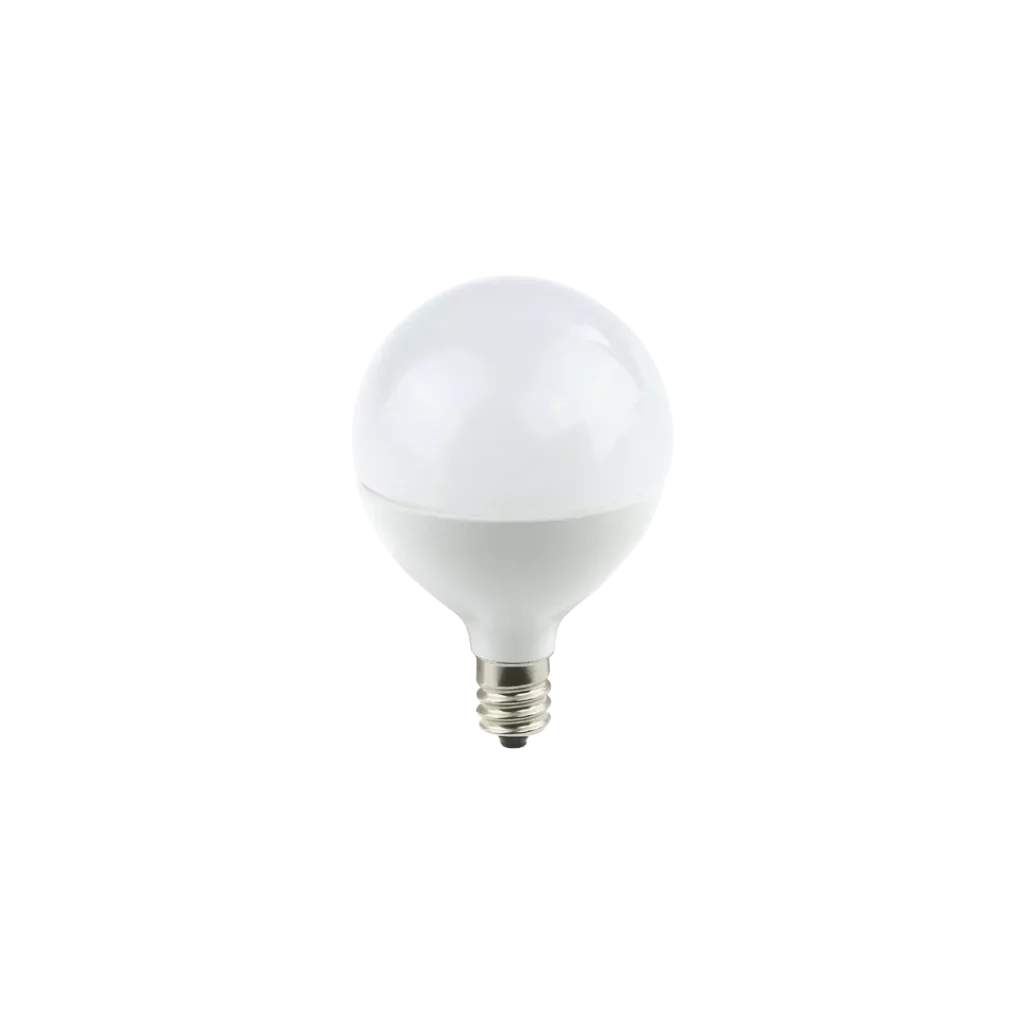

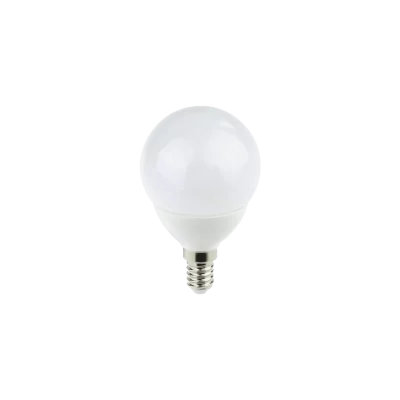

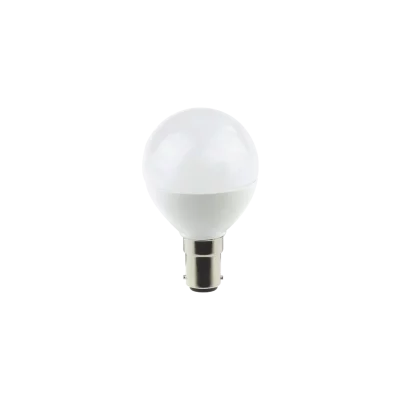

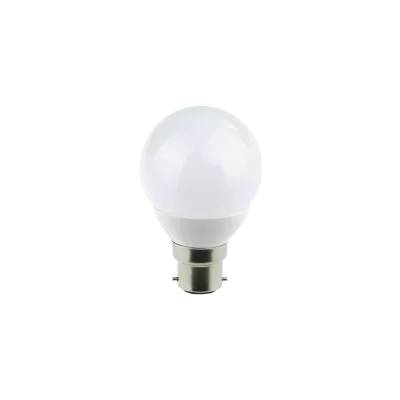

| G50 (G16.5) |
T-L6G50-3W (T-L6G16.5-3W) |
T-L6G50D-3W (T-L6G16.5D-3W) |
3 | G50(G16.5): 25 | 250 | E12,E14 E17,E26,E27 B22d,B15d |
75/2.95 | 82/3.23 | 73.9/2.91 | 76/2.99 | 49/1.93 |
| T-L6G50-4W (T-L6G16.5-4W) |
T-L6G50D-4W (T-L6G16.5D-4W) |
4 | G50(G16.5): 30 | 350 | |||||||
| T-L6G50-5W (T-L6G16.5-5W) |
T-L6G50D-5W (T-L6G16.5D-5W) |
5 | G50(G16.5): 40 | 500 | |||||||

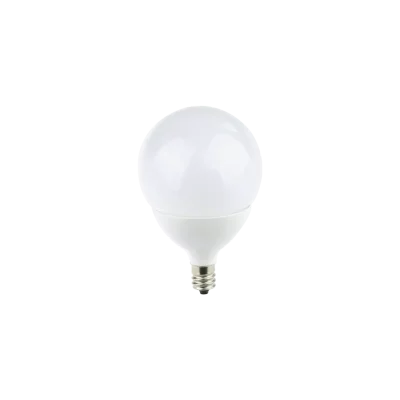

| G60 (G19) |
T-L6G50-3W (T-L6G19-3W) |
T-L6G50D-3W (T-L6G19D-3W) |
3 | G60(G19): 25 | 250 | E12,E14 E17,E26,E27 B22d,B15d |
90.5/3.56 | 97/3.82 | 89.5/3.52 | 92.5/3.64 | 59/2.32 |
| T-L6G50-4W (T-L6G19-4W) |
T-L6G50D-4W (T-L6G19D-4W) |
4 | G60(G19): 30 | 350 | |||||||
| T-L6G50-5W (T-L6G19-5W) |
T-L6G50D-5W (T-L6G19D-5W) |
5 | G60(G19): 40 | 500 | |||||||

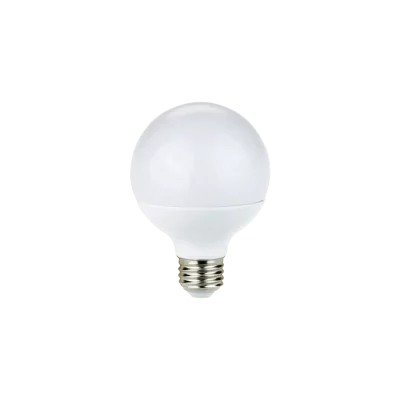

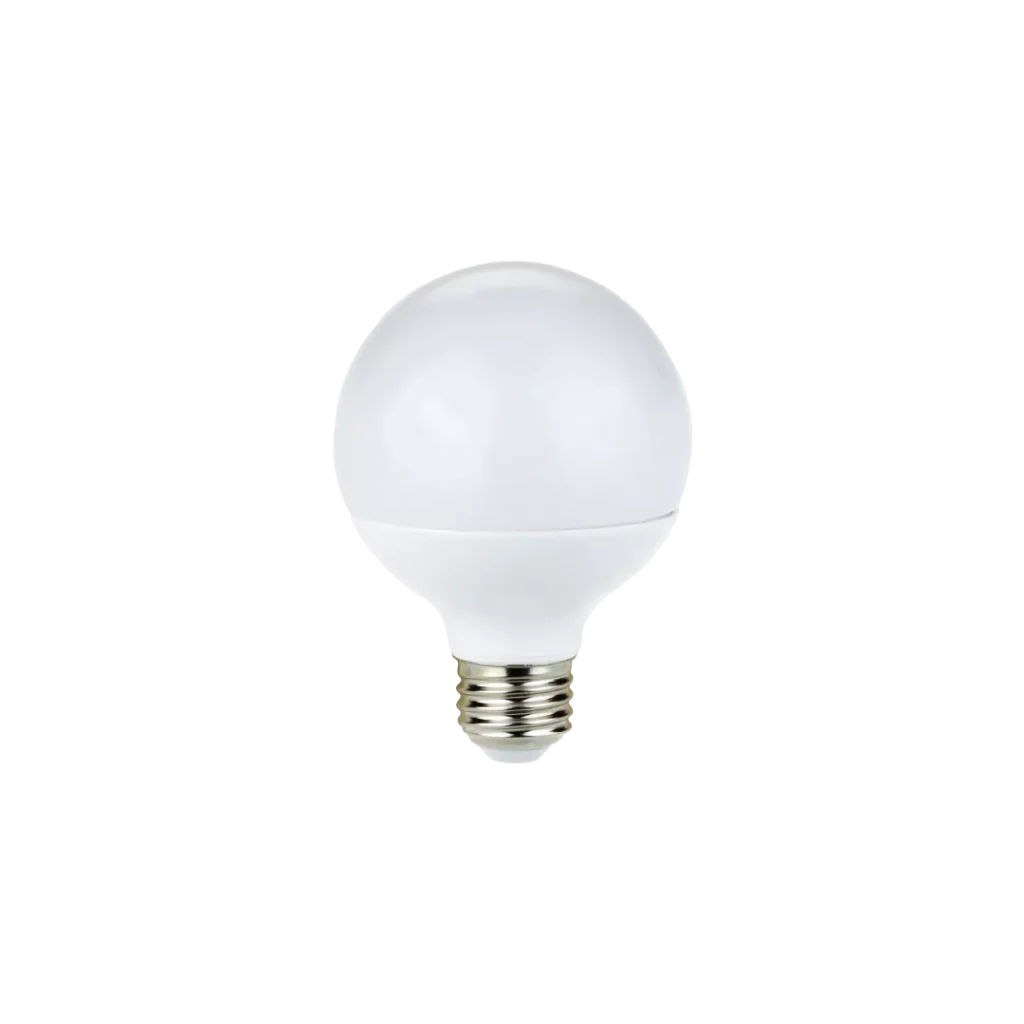

| G80 (G25) |
T-L3G80-5W (T-L3G25-5W) |
T-L3G80D-5W (T-L3G25D-5W) |
5 | G80(G25): 30 | 350 | E26,E27 B22d |
– | – | 112/4.42 | 116/4.57 | 80/3.15 |
| T-L3G80-7W (T-L3G25-7W) |
T-L3G80D-7W (T-L3G25D-7W) |
7 | G80(G25): 45 | 500 | |||||||
| T-L3G80-9W (T-L3G25-9W) |
T-L3G80D-9W (T-L3G25D-9W) |
9 | G80(G25): 60 | 810 | |||||||

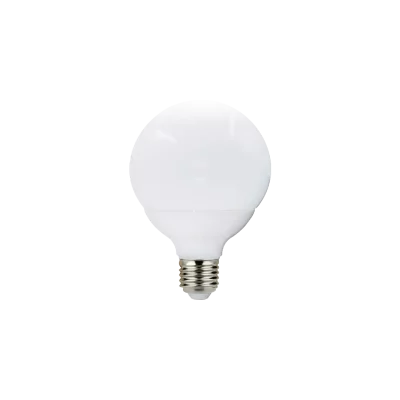

| G95 (G30) |
T-L2G95-8W (T-L2G30-8W) |
T-L2G95D-8W (T-L2G30D-8W) |
8 | G95(G30): 50 | 660 | E26,E27 B22d |
– | – | 127/5.0 | 130/5.12 | 95/3.74 |
| T-L2G95-10W (T-L2G30-10W) |
T-L2G95D-10W (T-L2G30D-10W) |
10 | G95(G30): 60 | 810 | |||||||
| T-L2G95-12W (T-L2G30-12W) |
T-L2G95D-12W (T-L2G30D-12W) |
12 | G95(G30): 75 | 1055 | |||||||

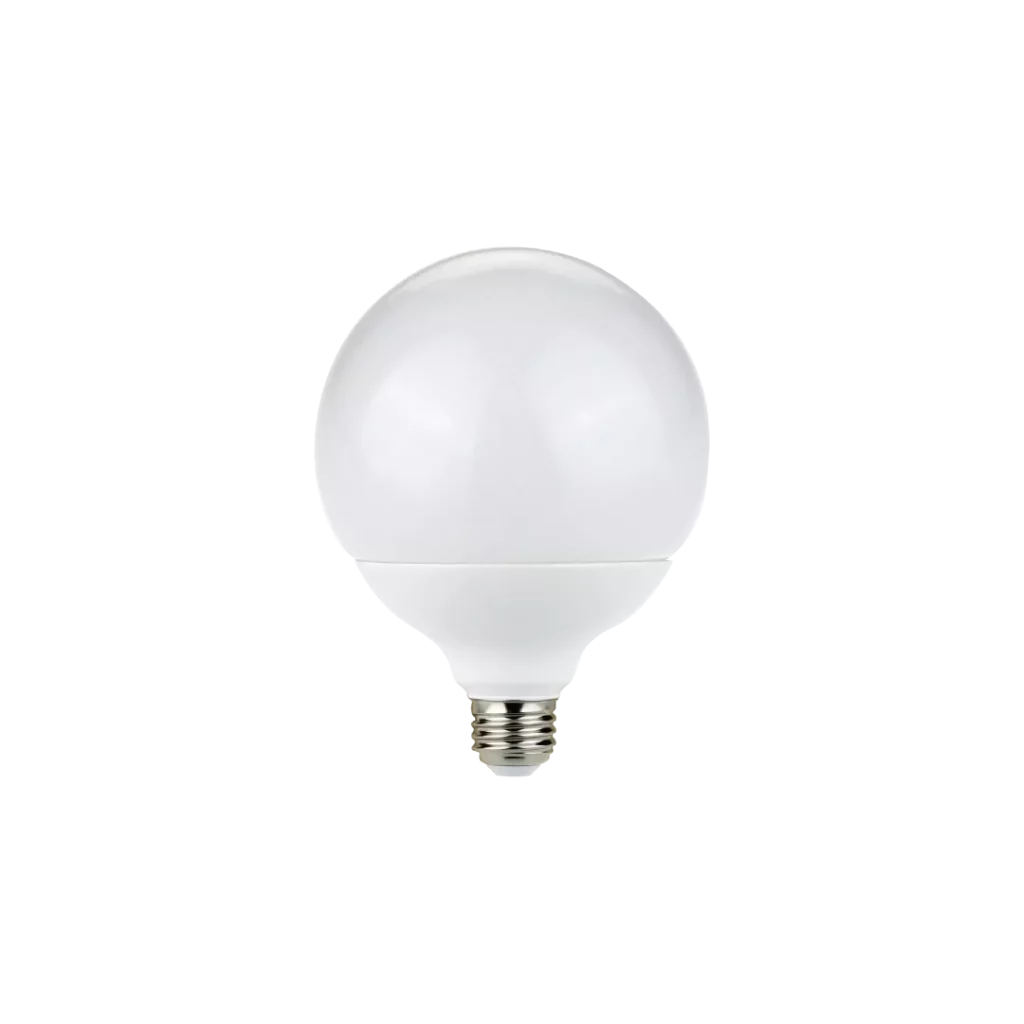

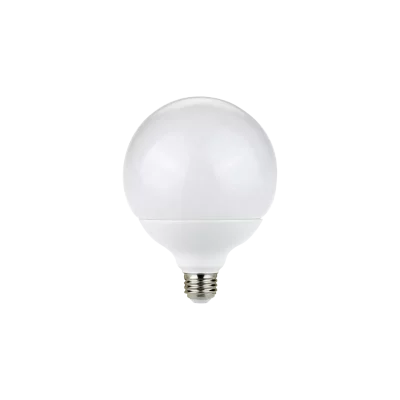

| G120 (G40) |
T-L2G120-10W (T-L2G40-10W) |
T-L2G120D-10W (T-L2G40D-10W) |
10 | G120(G40): 60 | 810 | E26,E27 B22d |
– | – | 162/6.38 | 165/6.5 | 120/4.72 |
| T-L2G120-12 (T-L2G40-12W) |
T-L2G120D-12W (T-L2G40D-12W) |
12 | G120(G40): 75 | 1055 | |||||||
| T-L2G120-14W (T-L2G40-14W) |
T-L2G120D-14W (T-L2G40D-14W) |
14 | G120(G40): 90 | 1350 | |||||||
| T-L2G120-16W (T-L2G40-16W) |
T-L2G120D-16W (T-L2G40D-16W) |
16 | G120(G40): 100 | 1521 | |||||||
