| Series | Model Number | Wattag (W) |
Incandescent Wattage Comparison(W) |
Luminous Flux(lm) |
Base | M.O.L(mm/in) | M.O.D (mm/in) |
||||
| Standard | Dimmable | E12 | E14 | E26 | E27 | ||||||

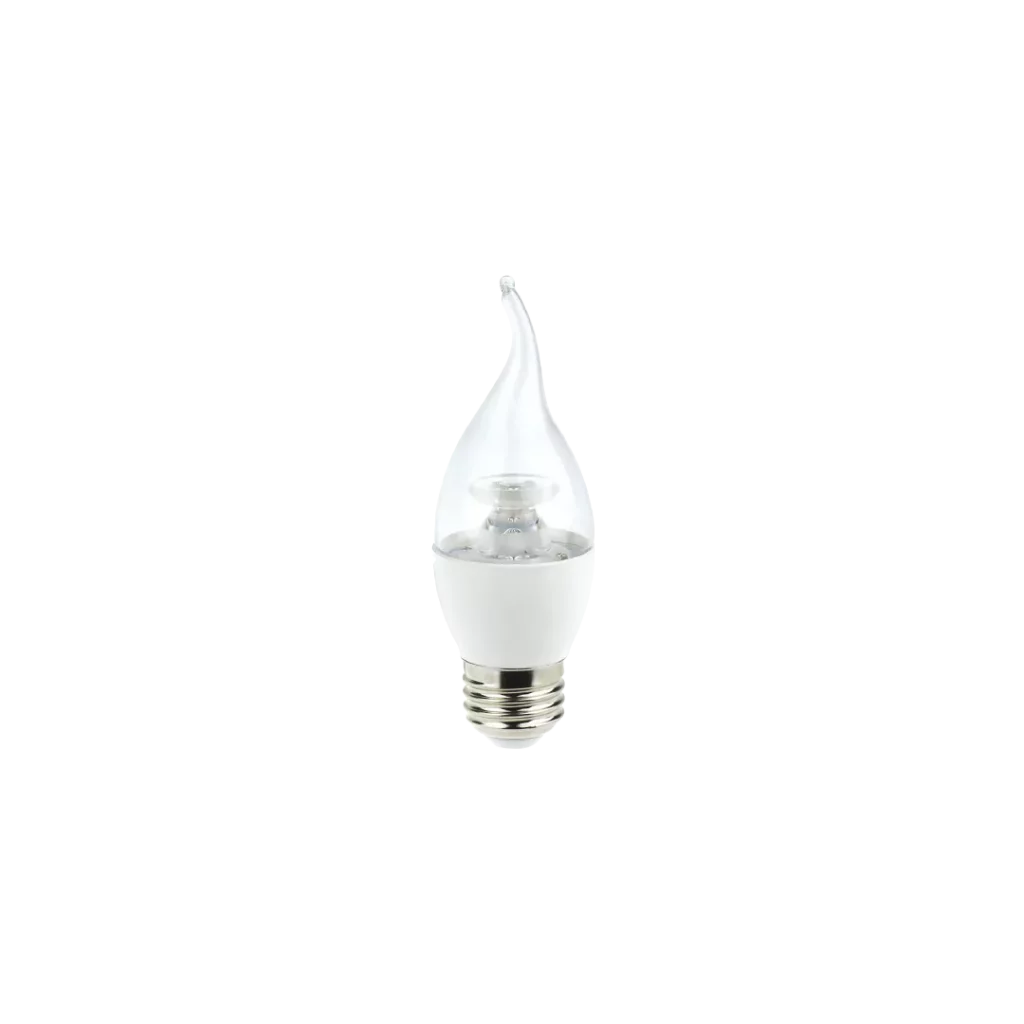

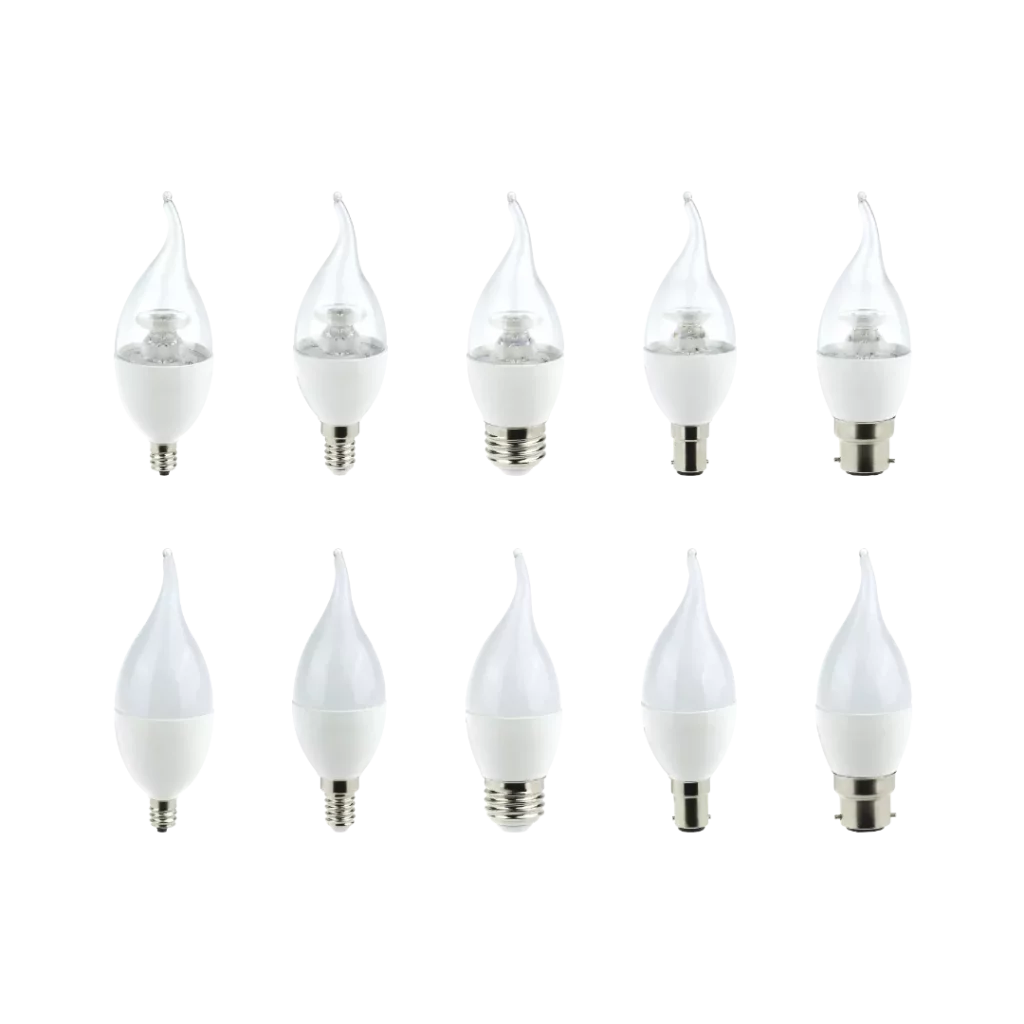

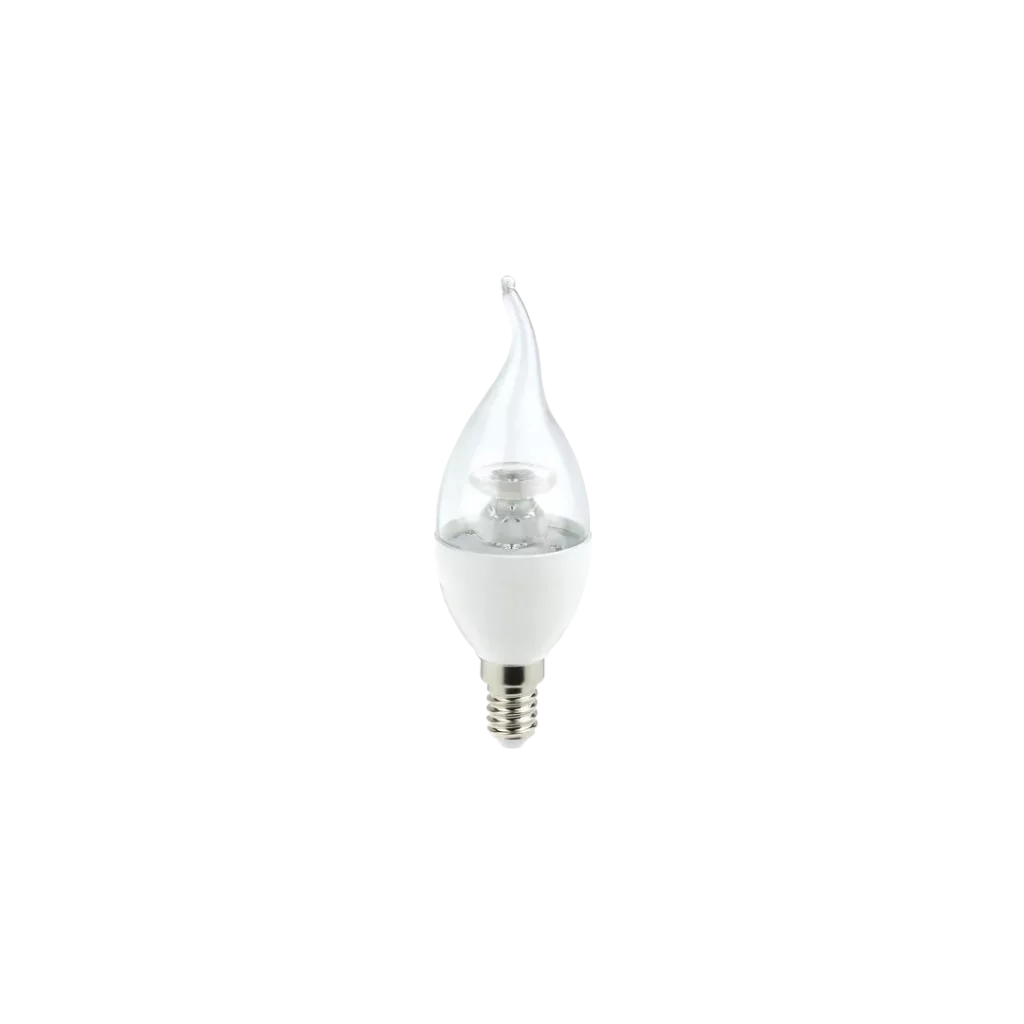

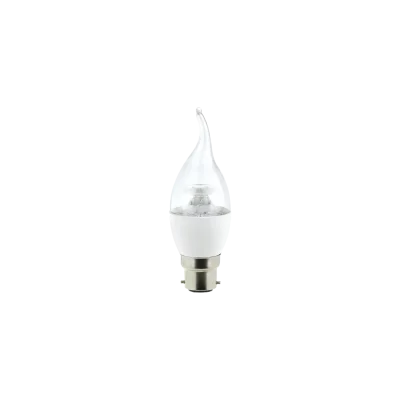

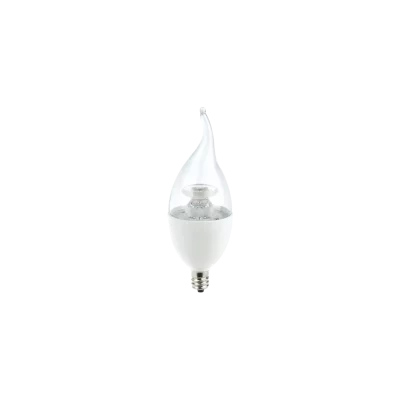

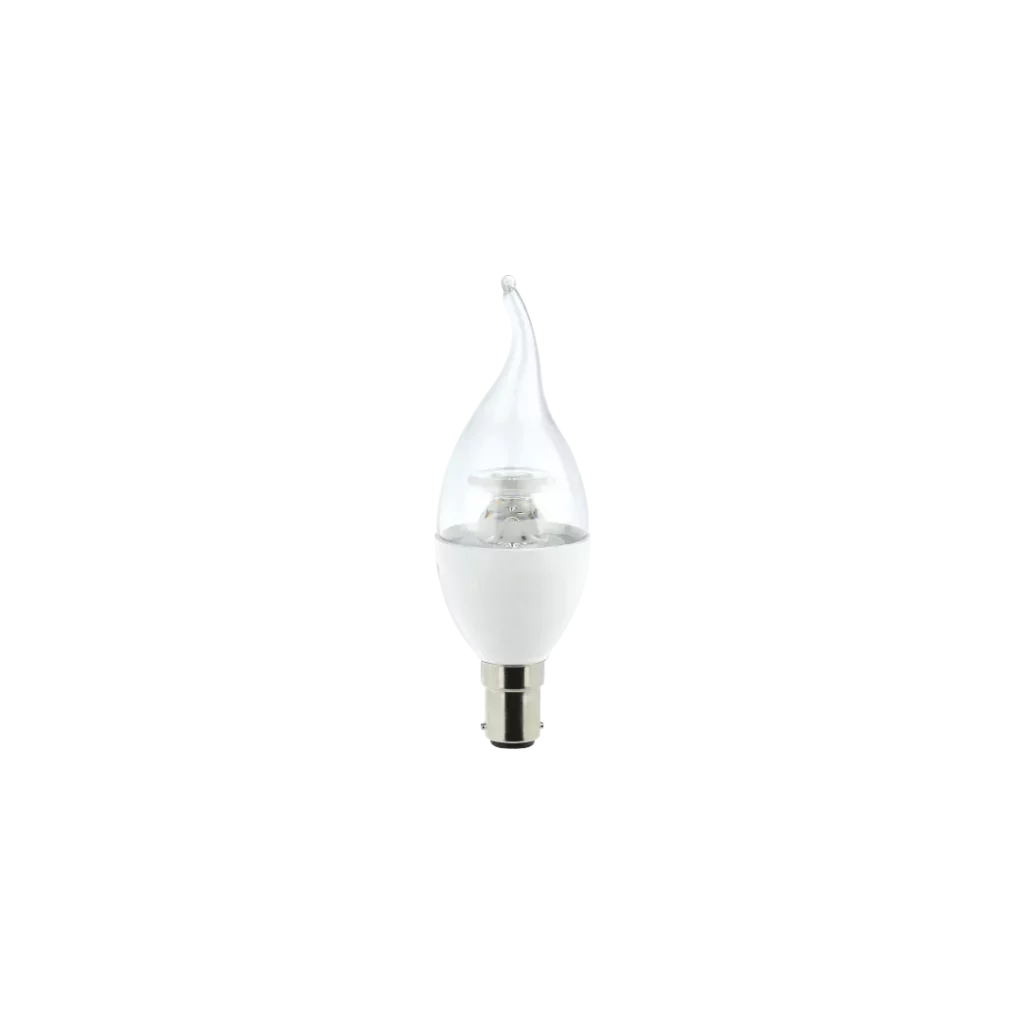

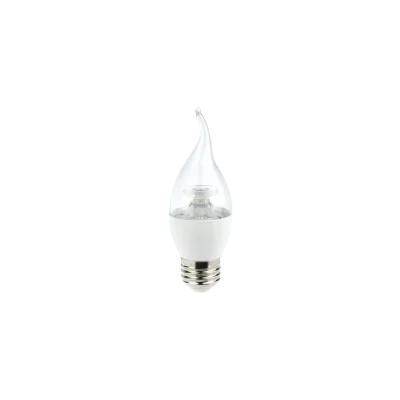

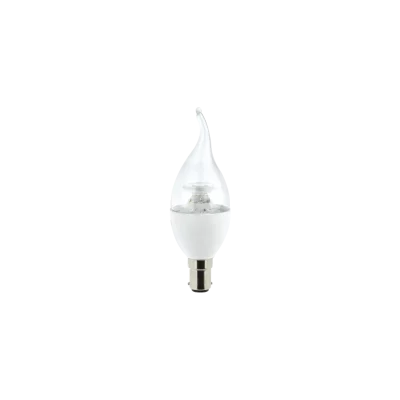

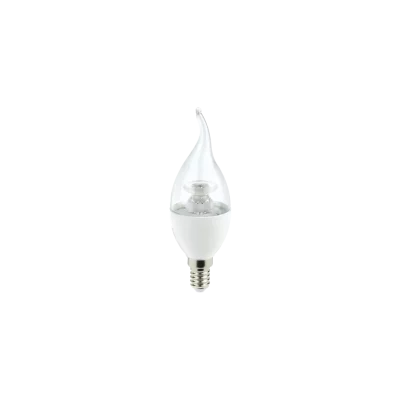

| Clear Tip Series | |||||||||||
| B35 (C12) |
T-L3B35A2T-3W (T-L3C12A2T-3W) |
T-L3B35A2TD-3W (T-L3C12A2TD-3W) |
3 | B35(C12):25 | 250 | E12,E14, E17,E26, E27,B22d, B15d |
101/3.98 | 125/4.92 | 100.1/3.94 | 120/4.72 | 36/1.42 |
| T-L3B35A2T-4W (T-L3C12A2T-4W) |
T-L3B35A2TD-4W (T-L3C12A2TD-4W) |
4 | B35(C12):30 | 320 | |||||||
| T-L3B35A2T-4.5W (T-L3C12A2T-4.5W) |
T-L3B35A2TD-4.5W (T-L3C12A2TD-4.5W) |
4.5 | B35(C12):35 | 380 | |||||||
| T-L3B35A2T-5W (T-L3C12A2T-5W) |
T-L3B35A2TD-5W (T-L3C12A2TD-5W) |
5 | B35(C12):40 | 470 | |||||||
| B42 (C16) |
T-L3B35A2T-7W (T-L3C12A2T-7W) |
T-L3B35A2TD-7W (T-L3C12A2TD-7W) |
7 | B42(C16):60 | 500 | 114/4.49 | 130/5.12 | 113/4.45 | 125/4.92 | 41/1.61 | |

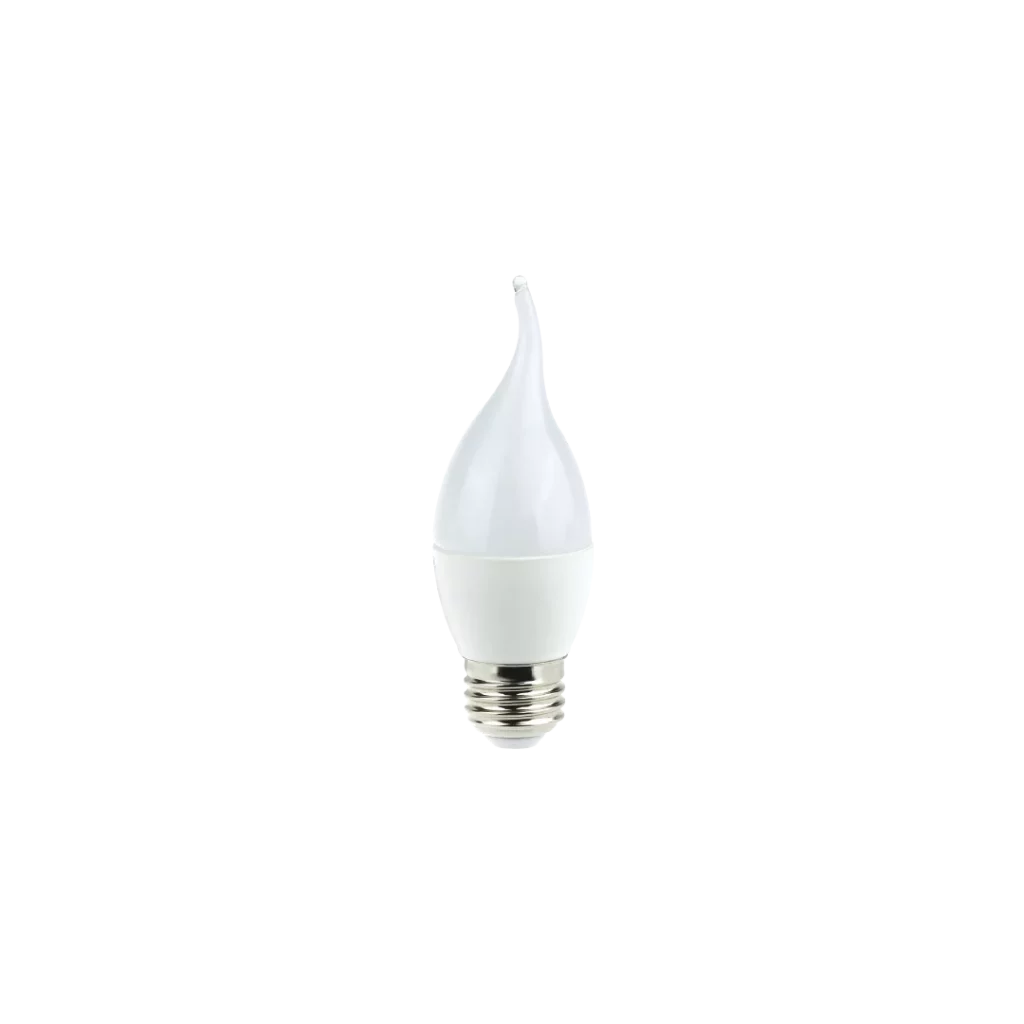

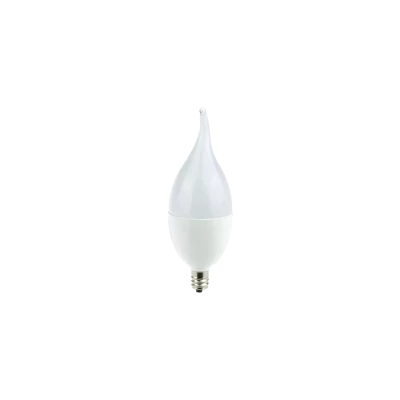

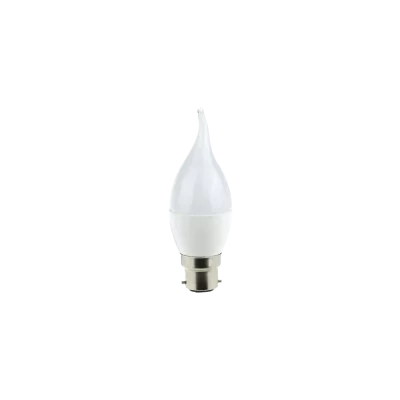

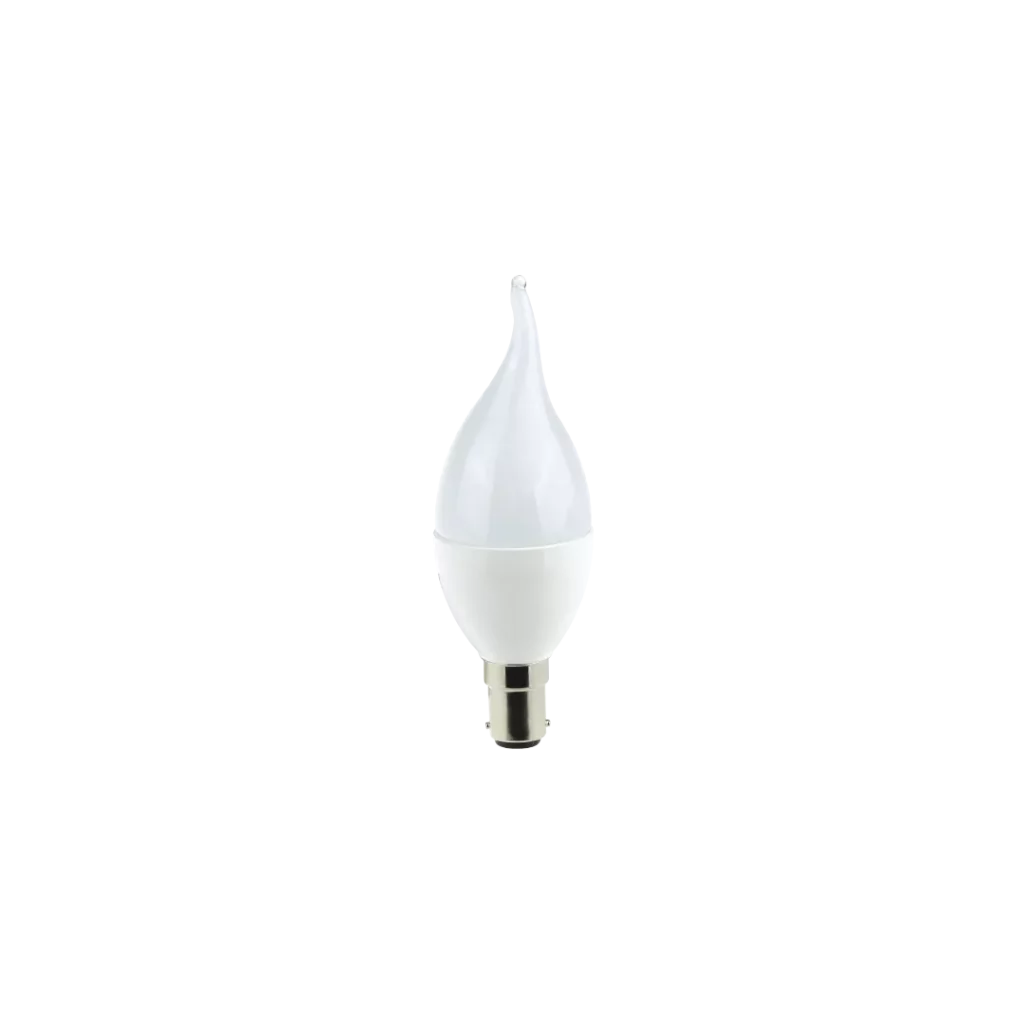

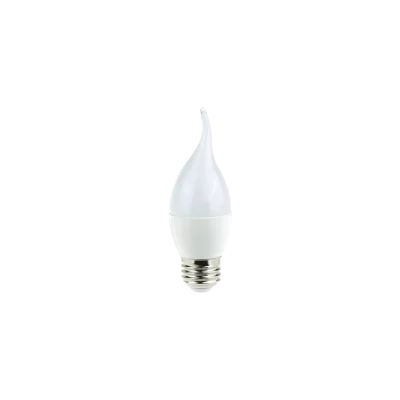

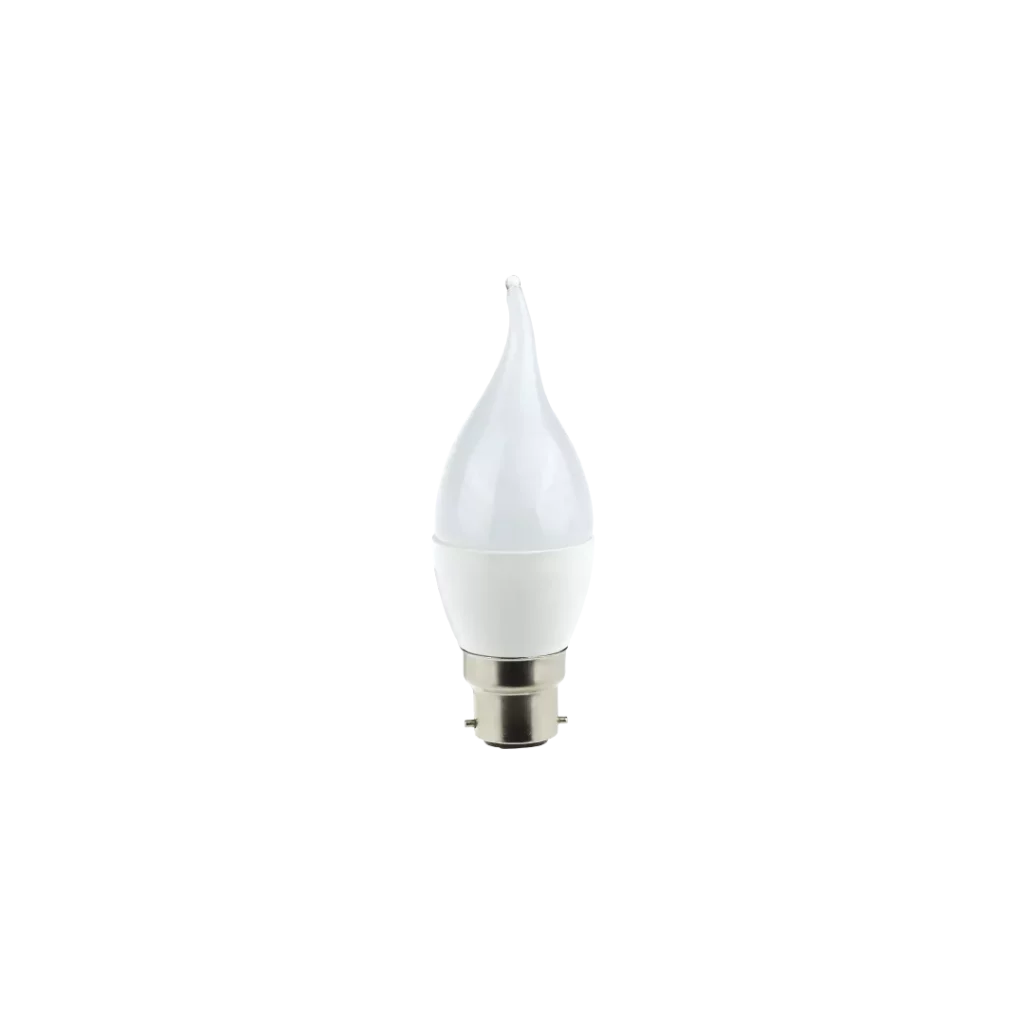

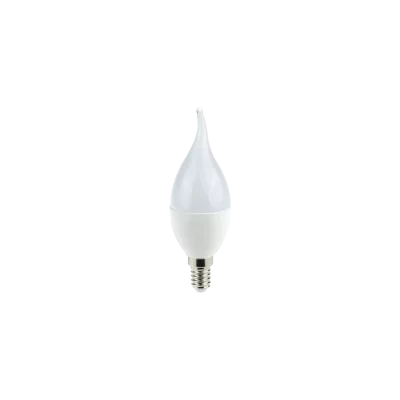

| Frosted Tip Series | |||||||||||
| B35 (C12) |
T-L3B35A2T-3W (T-L3C12A2T-3W) |
T-L3B35A2TD-3W (T-L3C12A2TD-3W) |
3 | B35(C12):25 | 250 | E12,E14, E17,E26, E27,B22d, B15d |
101/3.98 | 125/4.92 | 100.1/3.94 | 120/4.72 | 36/1.42 |
| T-L3B35A2T-4W (T-L3C12A2T-4W) |
T-L3B35A2TD-4W (T-L3C12A2TD-4W) |
4 | B35(C12):30 | 320 | |||||||
| T-L3B35A2T-4.5W (T-L3C12A2T-4.5W) |
T-L3B35A2TD-4.5W (T-L3C12A2TD-4.5W) |
4.5 | B35(C12):35 | 380 | |||||||
| T-L3B35A2T-5W (T-L3C12A2T-5W) |
T-L3B35A2TD-5W (T-L3C12A2TD-5W) |
5 | B35(C12):40 | 470 | |||||||
| B42 (C16) |
T-L3B35A2T-7W (T-L3C12A2T-7W) |
T-L3B35A2TD-7W (T-L3C12A2TD-7W) |
7 | B42(C16):60 | 500 | 114/4.49 | 130/5.12 | 113/4.45 | 125/4.92 | 41/1.61 | |
