| Series | Model Number | Wattage (W) |
Incandescent Wattage Comparison(W) |
35D CBCP(cd) |
Luminous Flux(lm) |
Beam Angle |
Base | M.O.L(mm/in) | M.O.D (mm/in) |
||
| Standard | Dimmable | E26 | E27 | ||||||||

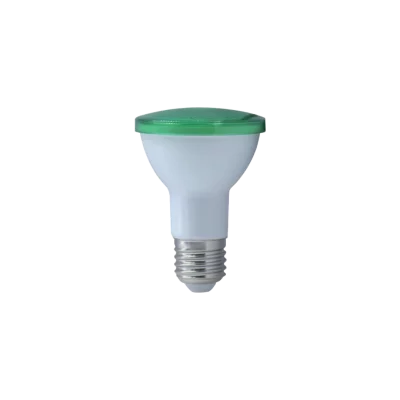

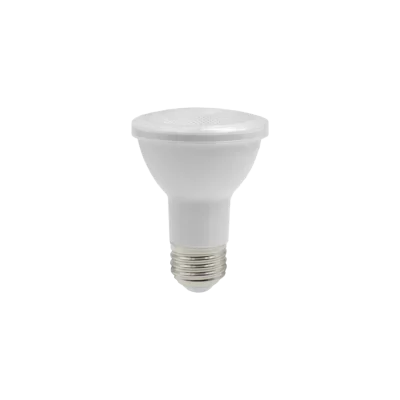

| PAR20 | T-L5PAR20-6W | T-L5PAR20D-6W | 6 | PAR20: 50 | 714 | 450 | 10°,15° 25°,35° 60° |
GU10 E26,E27 |
89/3.50 | 92/3.62 | 65/2.56 |
| T-L5PAR20-9W | T-L5PAR20D-9W | 9 | PAR20: 75 | 1400 | 650 | ||||||

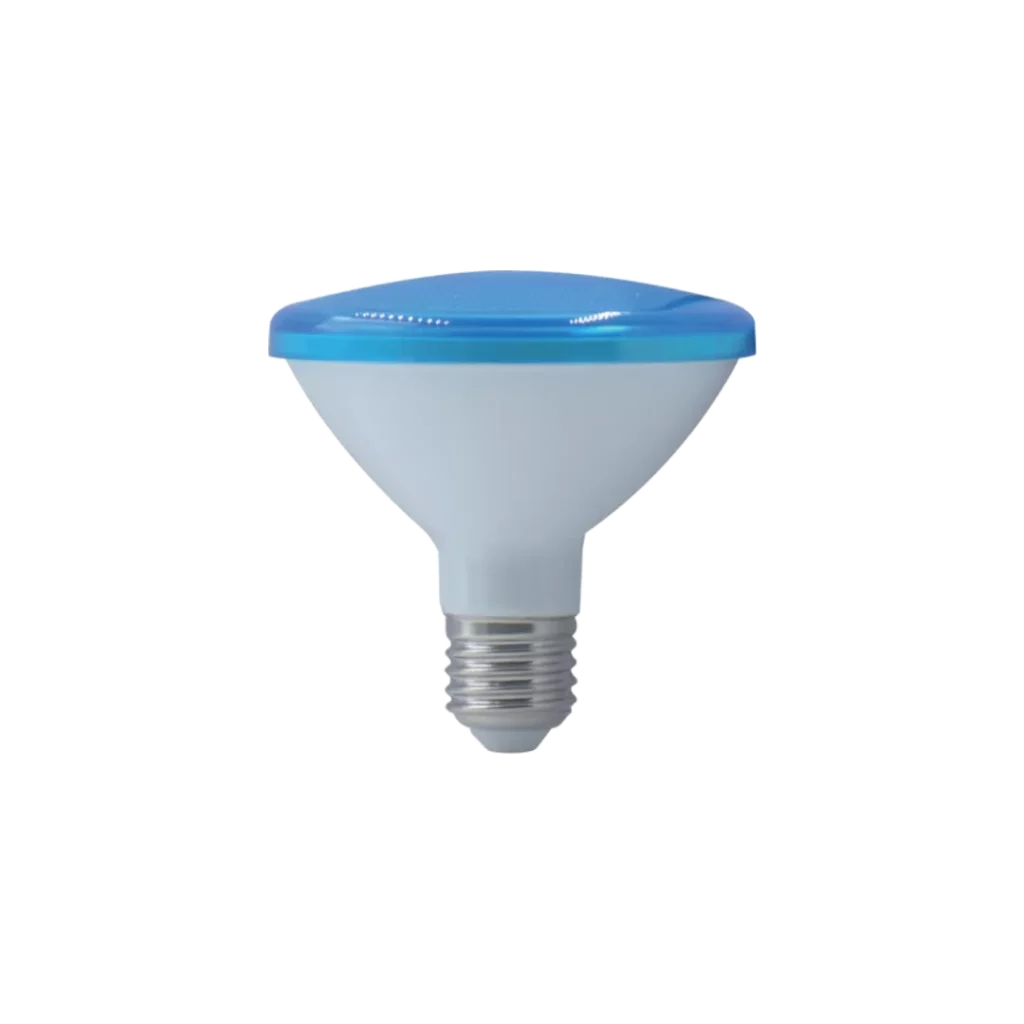

| PAR30S | T-L5PAR30S-10W | T-L5PAR30SD-10W | 10 | PAR30S: 75 | 1640 | 750 | 10°,15° 25°,35° 60° |
E26,E27 | 89/3.50 | 92/3.62 | 97/3.82 |
| T-L5PAR30S-11W | T-L5PAR30SD-11W | 11 | PAR30S: 75 | 1640 | 850 | ||||||

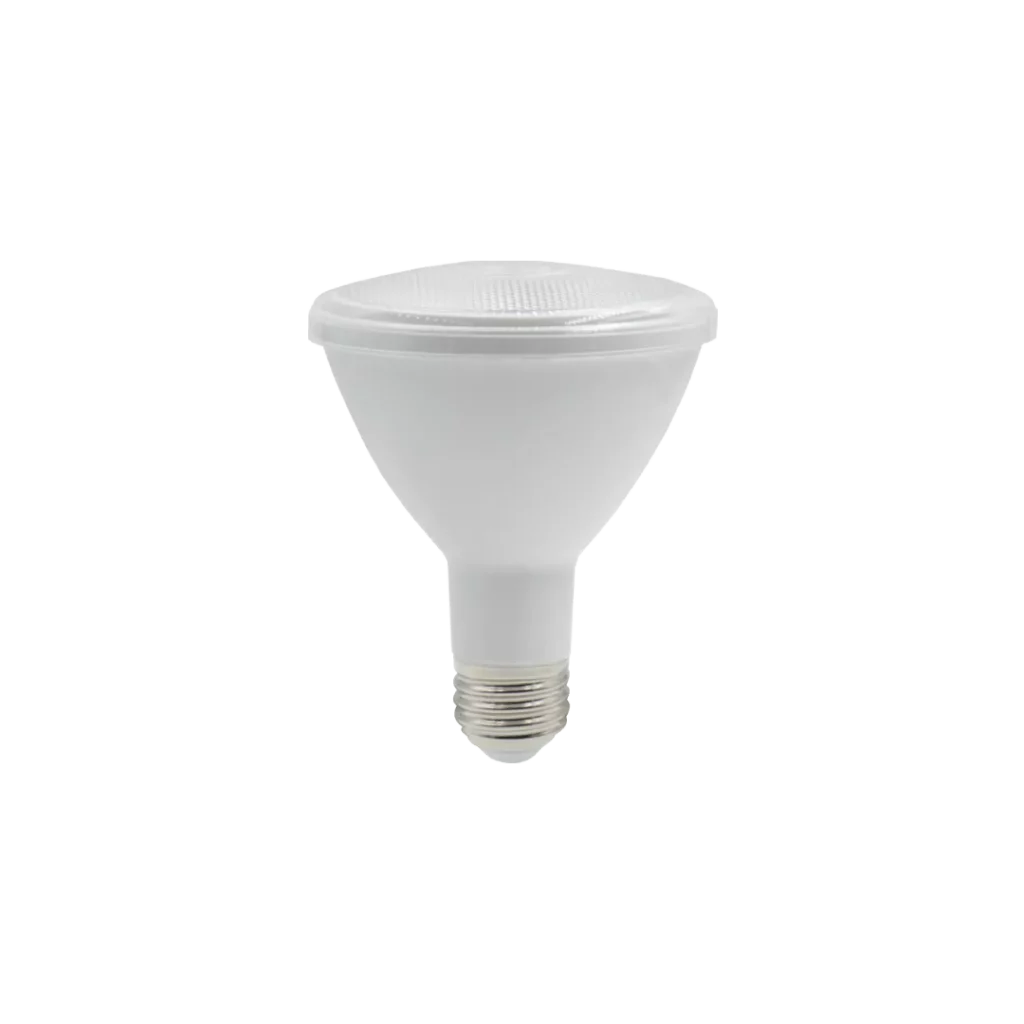

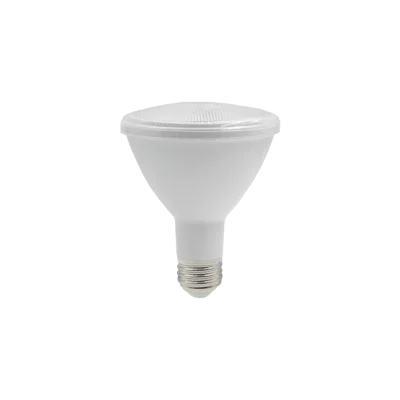

| PAR30L | T-L5PAR30L-10W | T-L5PAR30LD-10W | 10 | PAR30L: 75 | 1640 | 750 | 10°,15° 25°,35° 60° |
E26,E27 | 117/4.61 | 120/4.72 | 97/3.82 |
| T-L5PAR30L-11W | T-L5PAR30LD-11W | 11 | PAR30L: 75 | 1640 | 850 | ||||||
| T-L5PAR30L-13W | T-L5PAR30LD-13W | 13 | PAR30L: 95 | 2400 | 1050 | ||||||

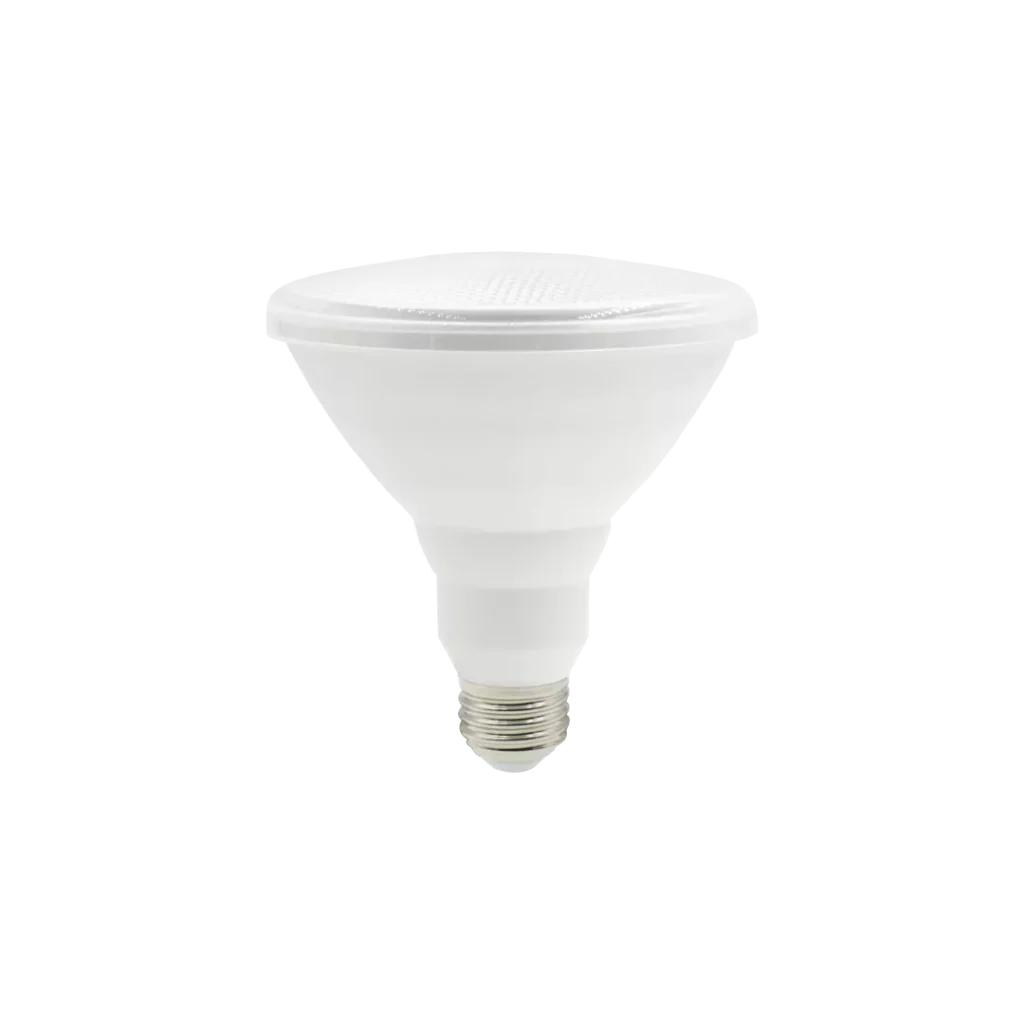

| PAR38 | T-L5PAR38-13W | T-L5PAR38D-13W | 13 | PAR38: 90 | 1967 | 950 | 10°,15° 25°,35° 60° |
E26,E27 | 135/5.31 | 138/5.43 | 121/4.76 |
| T-L5PAR38-15W | T-L5PAR38D-15W | 15 | PAR38: 100 | 2256 | 1100 | ||||||
| T-L5PAR38-17W | T-L5PAR38D-17W | 17 | PAR38: 120 | 2864 | 1350 | ||||||
| T-L5PAR38-18W | T-L5PAR38D-18W | 18 | PAR38: 150 | 3750 | 1750 | ||||||
