| Series | Model Number | Wattage (W) |
Incandescent Wattage Comparison(W) |
Luminous Flux(lm) |
Base | M.O.L(mm/in) | M.O.D (mm/in) |
|||
| Standard | Dimmable | E14 | E26 | E27 | ||||||
| R(BR) Series (Thermal plastics with metal heatsink) | ||||||||||

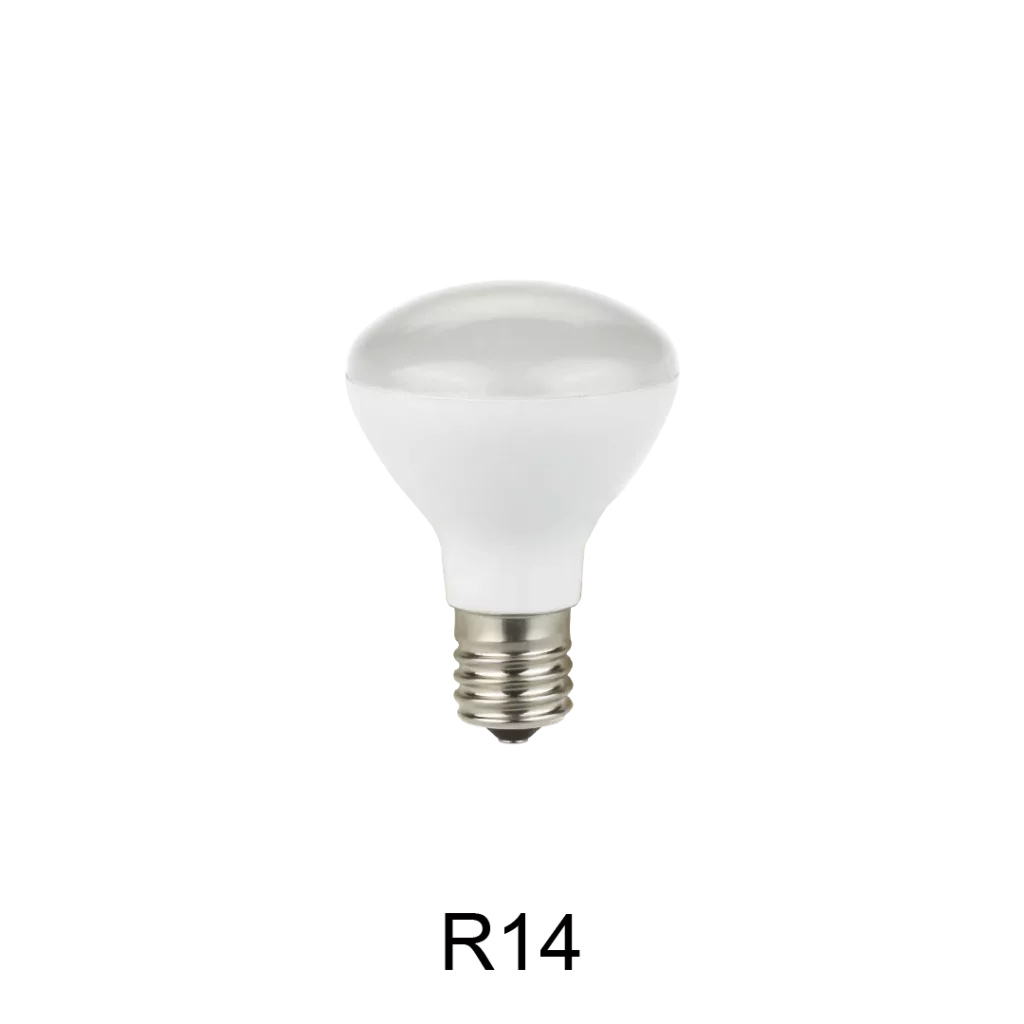

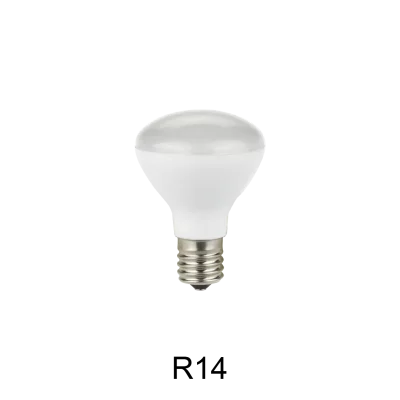

| R14 | T-L2R14-4W | T-L2R14D-4W | 4 | R14:25 | 280 | E17,E26 | – | 55/2.17 | – | 45/1.77 |

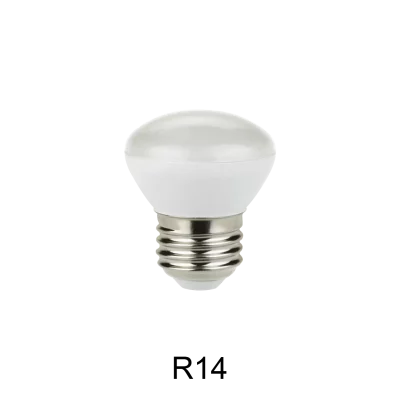

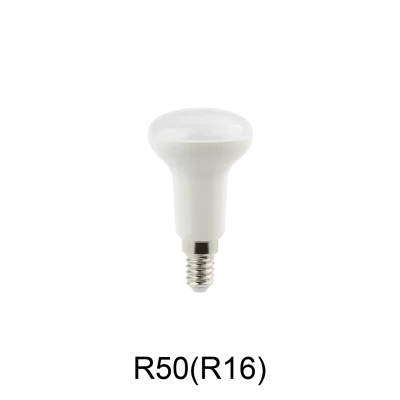

| R50 (R16) |
T-L2R50-5W (T-L2R16-5W) |
T-L2R50D-5W (T-L2R16D-5W) |
5 | R50(R16):35 | 350 | E14,E26, E27 |
88/3.46 | 82/3.23 | 85/3.35 | 50/1.97 |
| T-L2R50-6W (T-L2R16-6W) |
T-L2R50D-6W (T-L2R16D-6W) |
6 | R50(R16):40 | 450 | ||||||

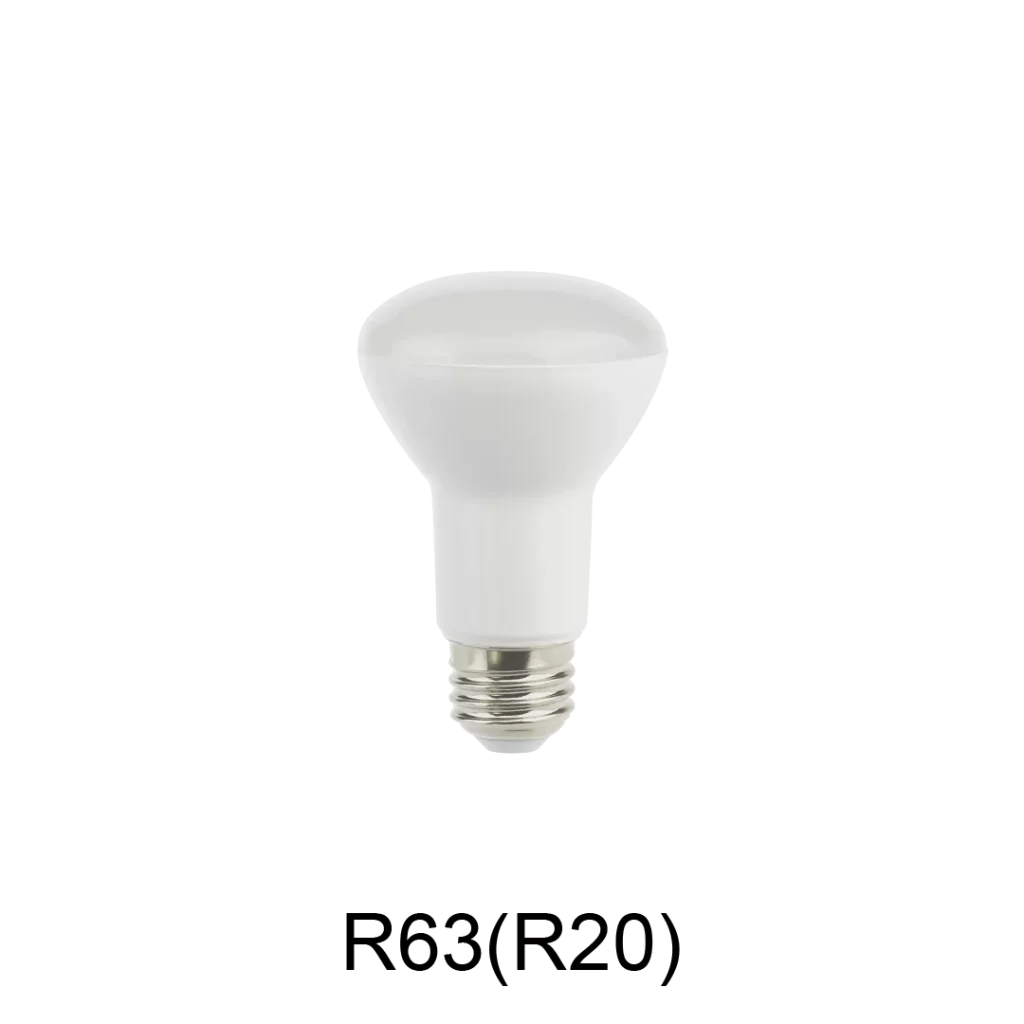

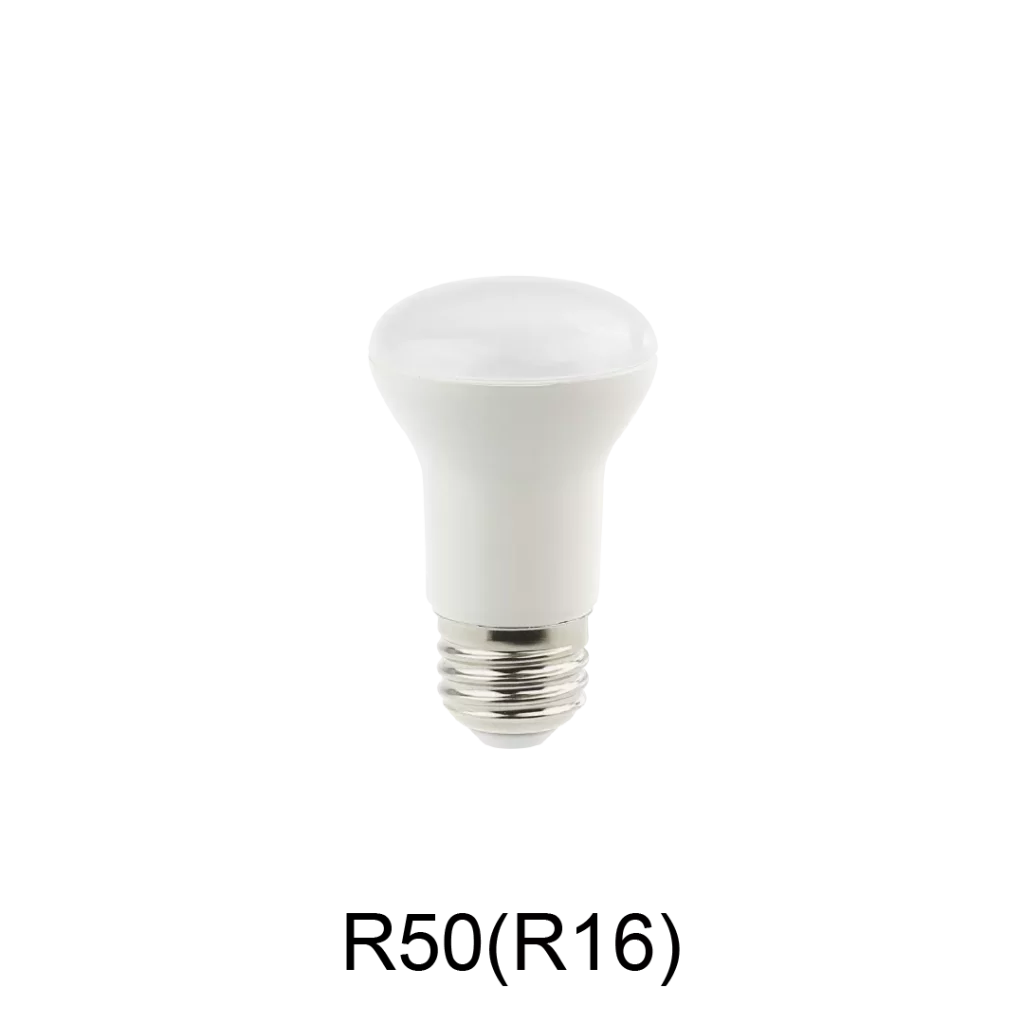

| R63 (R20) |
T-L2R63-7W (T-L2R20-7W) |
T-L2R63D-7W (T-L2R20D-7W) |
7 | R63(R20):45 | 500 | E26,E27 | – | 100/3.94 | 103/4.06 | 63/2.48 |
| T-L2R63-8W (T-L2R20-8W) |
T-L2R63D-8W (T-L2R20D-8W) |
8 | R63(R20):50 | 560 | ||||||
| T-L2R63-10W (T-L2R20-10W) |
T-L2R63D-10W (T-L2R20D-10W) |
10 | R63(R20):60 | 810 | ||||||

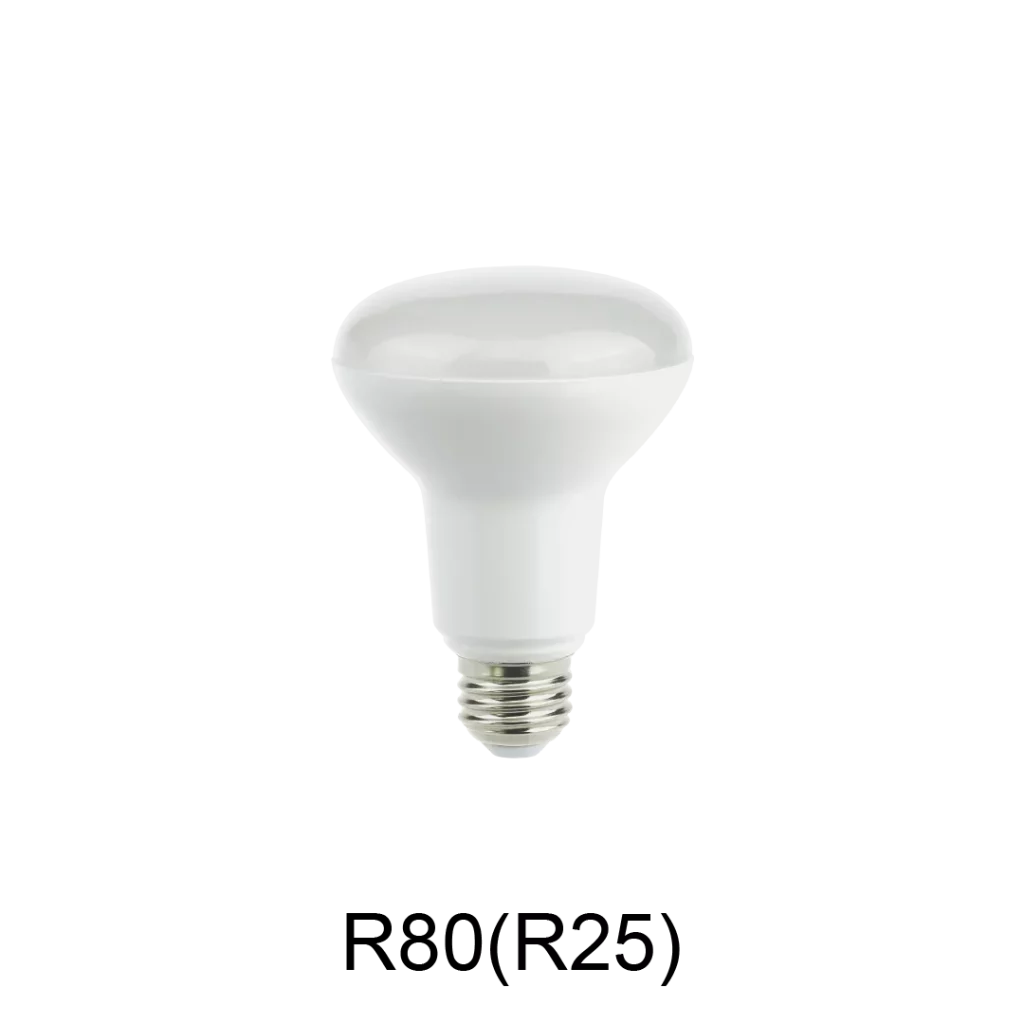

| R80 (R25) |
T-L2R80-8W (T-L2R25-8W) |
T-L2R80D-8W (T-L2R25D-8W) |
8 | R80(R25):50 | 650 | E26,E27 | – | 111/4.37 | 114/4.49 | 80/3.15 |
| T-L2R80-10W (T-L2R25-10W) |
T-L2R80D-10W (T-L2R25D-10W) |
10 | R80(R25):60 | 810 | ||||||

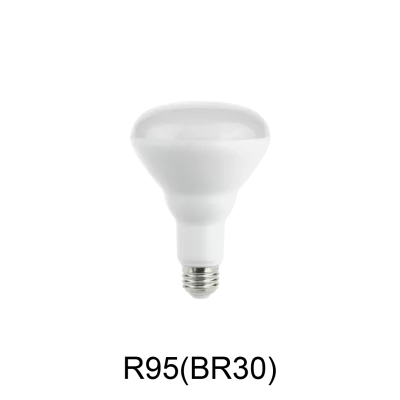

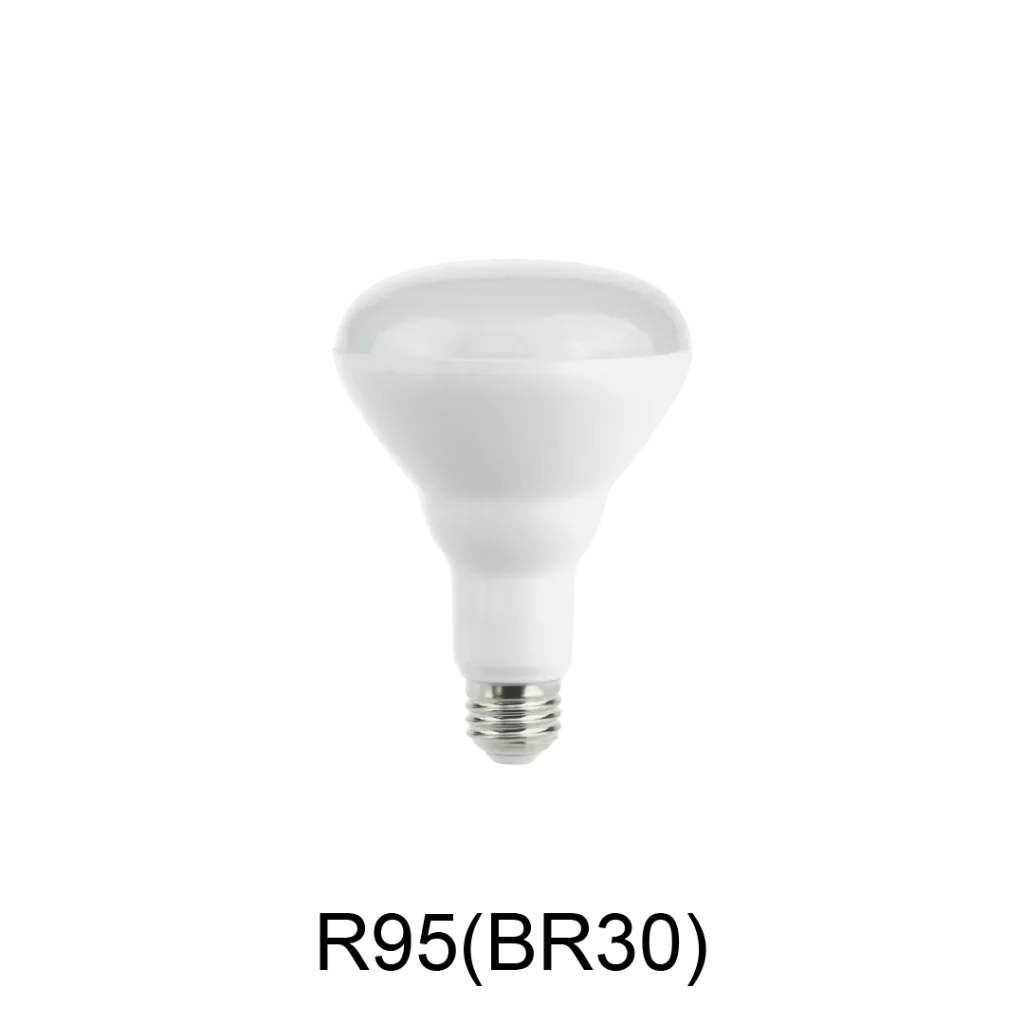

| R95 (BR30) |
T-L2R95-9W (T-L2BR30-9W) |
T-L2R95D-9W (T-L2BR30D-9W) |
9 | R95(R30):60 | 650 | E26,E27,
GU24 |
– | 135/5.31 | 138/5.43 | 95/3.74 |
| T-L2R95-10W (T-L2BR30-10W) |
T-L2R95D-10W (T-L2BR30D-10W) |
10 | R95(R30):65 | 750 | ||||||
| T-L2R95-12W (T-L2BR30-12W) |
T-L2R95D-12W (T-L2BR30D-12W) |
12 | R95(R30):75 | 950 | ||||||
| T-L2R95-14W (T-L2BR30-14W) |
T-L2R95D-14W (T-L2BR30D-14W) |
14 | R95(R30):85 | 1060 | ||||||
| T-L2R95-16W (T-L2BR30-16W) |
T-L2R95D-16W (T-L2BR30D-16W) |
16 | R95(R30):90 | 1260 | ||||||

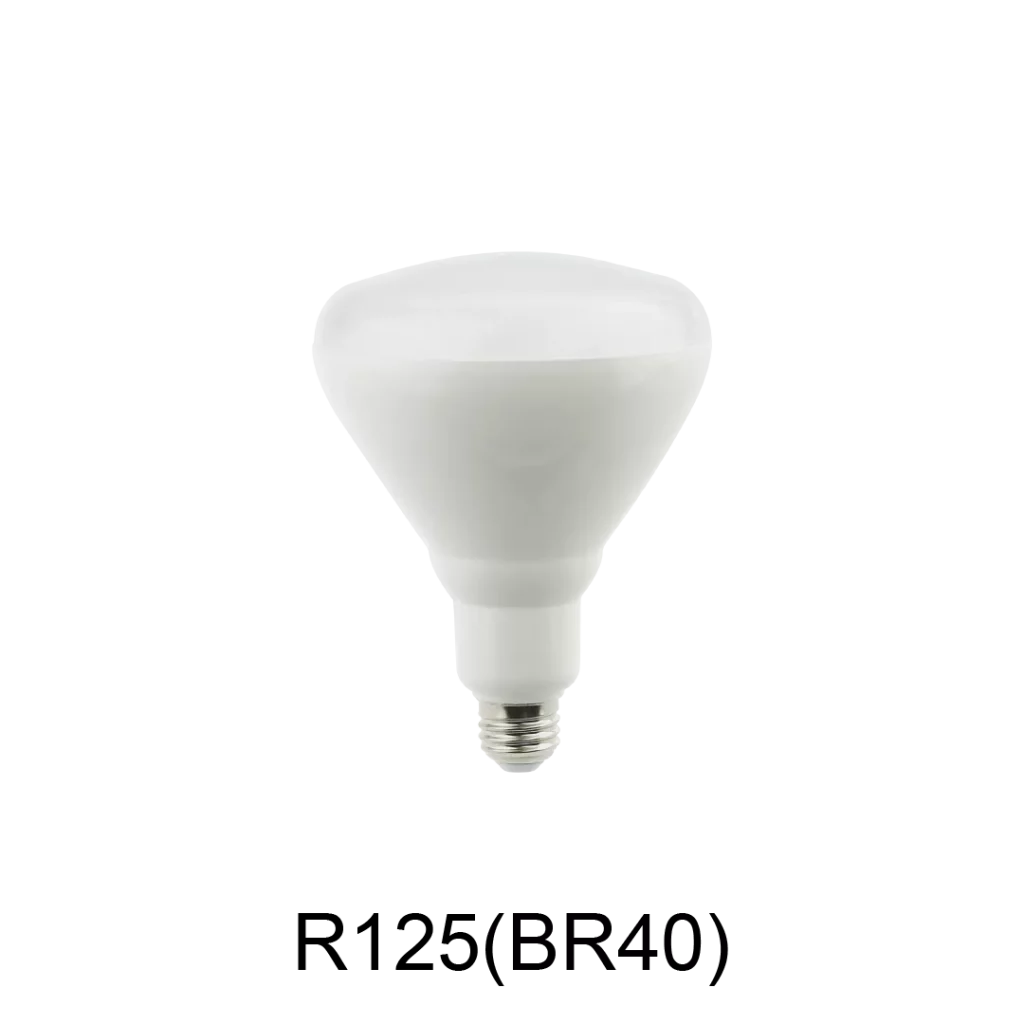

| R125 (BR40) |
T-L2R125-12W (T-L2BR40-12W) |
T-L2R125D-12W (T-L2BR40D-12W) |
12 | R125(BR40):75 | 950 | E26,E27 | – | 163/6.42 | 166/6.54 | 125/4.92 |
| T-L2R125-14W (T-L2BR40-14W) |
T-L2R125D-14W (T-L2BR40D-14W) |
14 | R125(BR40):85 | 1060 | ||||||
| T-L2R125-16W (T-L2BR40-16W) |
T-L2R125D-16W (T-L2BR40D-16W) |
16 | R125(BR40):90 | 1260 | ||||||
| T-L2R125-18W (T-L2BR40-18W) |
T-L2R125D-18W (T-L2BR40D-18W) |
18 | R125(BR40):100 | 1400 | ||||||
| T-L2R125-22W (T-L2BR40-22W) |
T-L2R125D-22W (T-L2BR40D-22W) |
22 | R125(BR40):120 | 1750 | ||||||
| R(BR) Series (Metal Heatsink) | ||||||||||
| R125 (BR40) |
T-LEDR125-32W (T-LEDBR40-32W) |
T-LEDR125D-32W (T-LEDBR40D-32W) |
32 | R125(BR40):200 | 3000 | E26,E27 | – | 164/6.46 | 167/6.57 | 125/4.92 |
| T-LEDR125-36W (T-LEDBR40-36W) |
T-LEDR125D-36W (T-LEDBR40D-36W) |
36 | R125(BR40):250 | 3750 | ||||||
