| Series | Model Number | Wattage (W) |
Incandescent Wattage Comparison(W) |
35D CBCP(cd) |
Luminous Flux(lm) |
Beam Angle |
Base | M.O.L(mm/in) | M.O.D (mm/in) |
||
| Standard | Dimmable | E26 | E27 | ||||||||

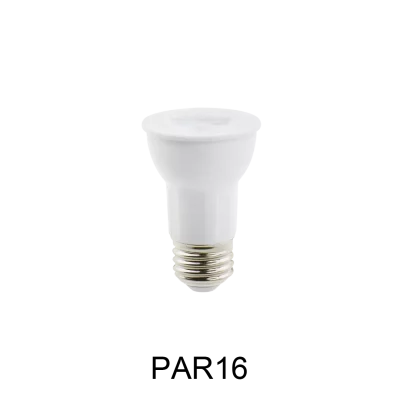

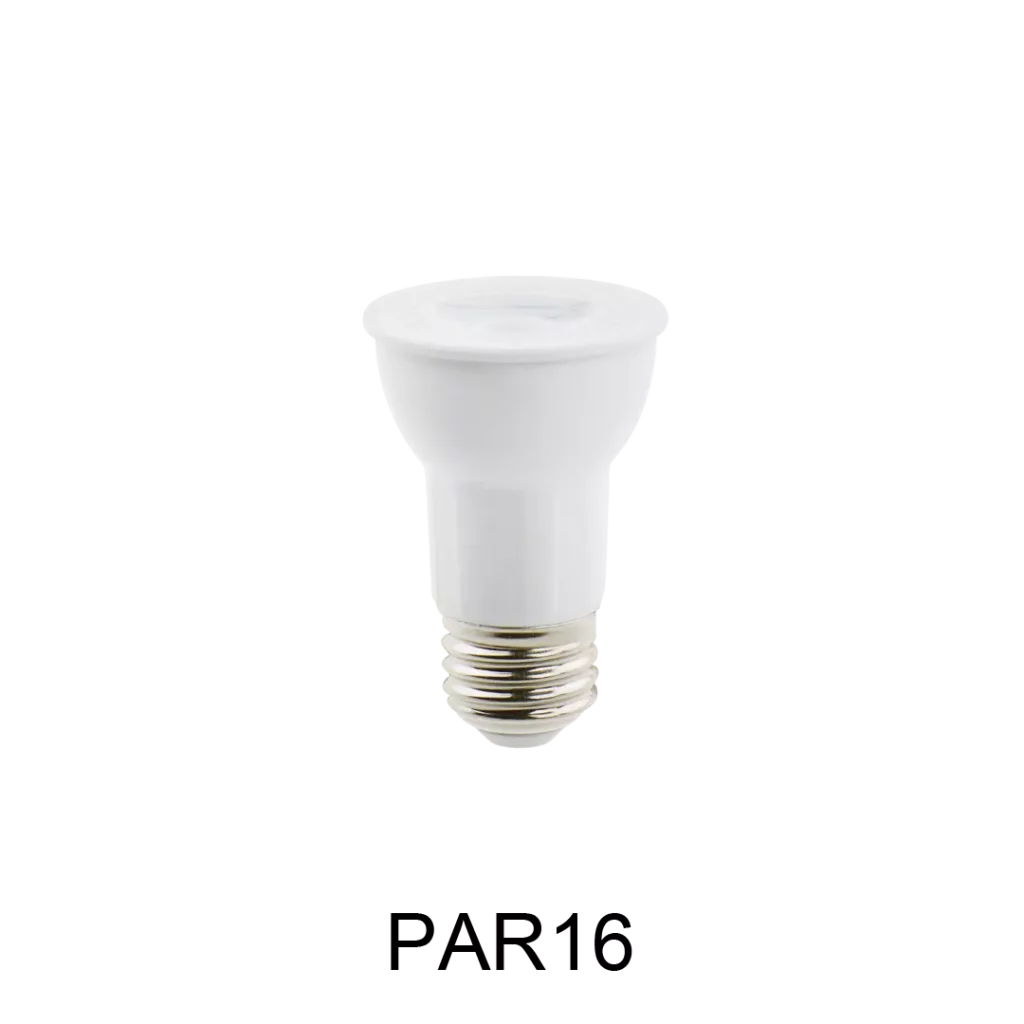

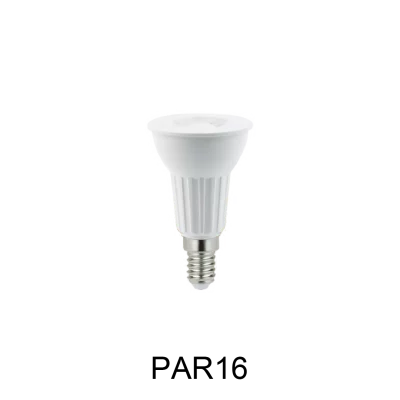

| PAR16 | T-L6PAR16-5W-CCOB | T-L6PAR16D-5W-CCOB | 5 | PAR16: 50 | 595 | 350 | 15°,25° 35°,60° |
E11, E14,E17 E26,E27 |
75/2.95 | 78/3.07 | 50/1.97 |
| T-L6PAR16-7W-CCOB | T-L6PAR16D-7W-CCOB | 7 | PAR16: 60 | 900 | 500 | ||||||
| PAR20 | T-L3PAR20-6W-CCOB | T-L3PAR20D-6W-CCOB | 6 | PAR20: 50 | 714 | 450 | 15°,25° 35° |
GU10 E26,E27 |
84.6/3.33 | 87.5/3.44 | 63/2.48 |
| T-L3PAR20-9W-CCOB | T-L3PAR20D-9W-CCOB | 9 | PAR20: 75 | 1400 | 650 | ||||||

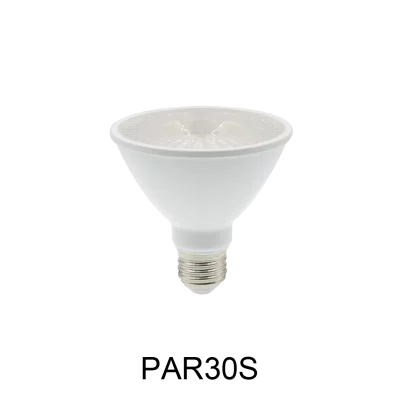

| PAR30S | T-L3PAR30S-10W-CCOB | T-L3PAR30SD-10W-CCOB | 10 | PAR30S: 75 | 1640 | 750 | 15°,25° 35° |
E26,E27 | 84.6/3.33 | 87.5/3.44 | 95/3.74 |
| T-L3PAR30S-11W-CCOB | T-L3PAR30SD-11W-CCOB | 11 | PAR30S: 75 | 1640 | 850 | ||||||

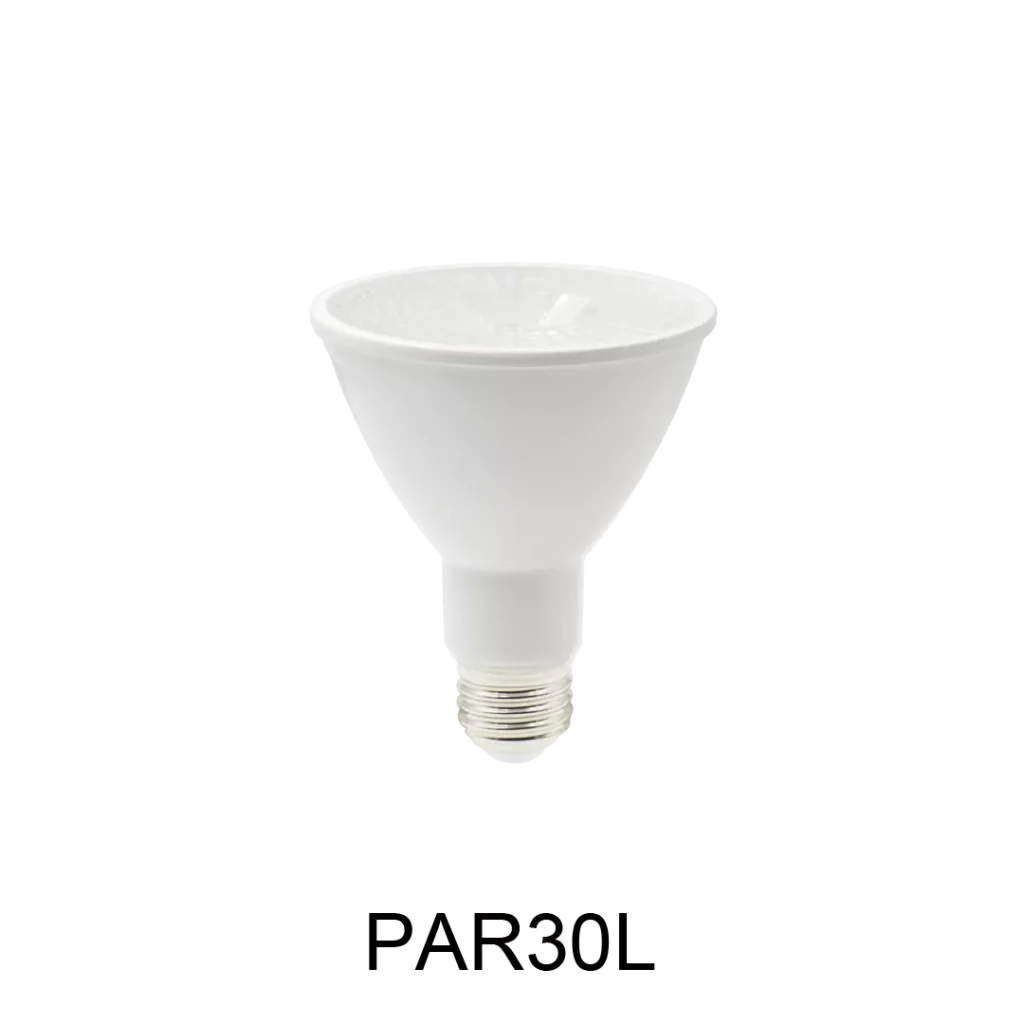

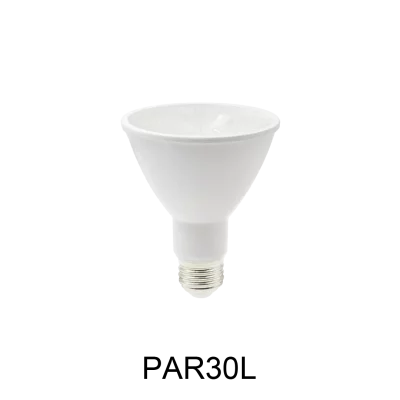

| PAR30L | T-L3PAR30L-10W-CCOB | T-L3PAR30LD-10W-CCOB | 10 | PAR30L: 75 | 1640 | 750 | 15°,25° 35° |
E26,E27 | 112/4.41 | 115/4.53 | 95/3.74 |
| T-L3PAR30L-11W-CCOB | T-L3PAR30LD-11W-CCOB | 11 | PAR30L: 75 | 1640 | 850 | ||||||
| T-L3PAR30L-13W-CCOB | T-L3PAR30LD-13W-CCOB | 13 | PAR30L: 95 | 2400 | 1050 | ||||||
| PAR38 | T-L3PAR38-13W-CCOB | T-L3PAR38D-13W-CCOB | 13 | PAR38: 90 | 1967 | 950 | 15°,25° 35° |
E26,E27 | 126/4.96 | 129/5.08 | 121/4.76 |
| T-L3PAR38-15W-CCOB | T-L3PAR38D-15W-CCOB | 15 | PAR38: 100 | 2256 | 1100 | ||||||
| T-L3PAR38-17W-CCOB | T-L3PAR38D-17W-CCOB | 17 | PAR38: 120 | 2864 | 1350 | ||||||
| T-L3PAR38-18W-CCOB | T-L3PAR38D-18W-CCOB | 18 | PAR38: 150 | 3750 | 1750 | ||||||
